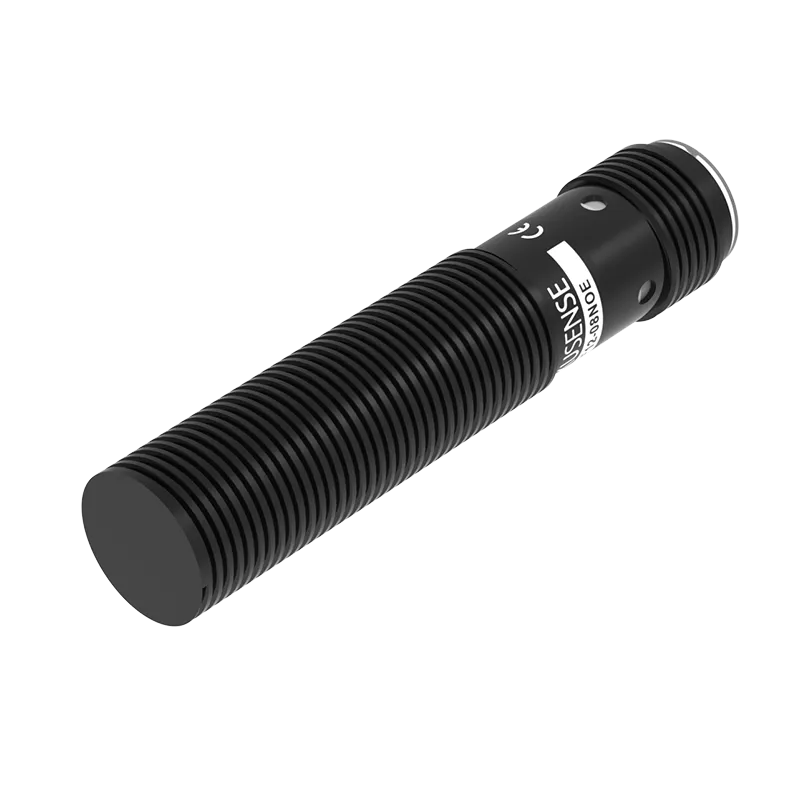

Anti-welding Slag TWF12-04NOE
| Ürün Kodu : | TWF12-04NOE |
| Kategori : | Algılama sensörleri, Endüktif sensörler |
| Etiketler : | TWF12-04NOE |
| Stok : | Stokta Var |
| Model | TWF12-04NOE |
| Working principle | Inductive sensor |
| Housing | Cylindrical |
| Installation type | Flush |
| Sensing distance | 4mm |
| Thread size | M12 |
| Sensing Surface Material | Teflon coating |
| Detected objects | Metal sensor |
| Indicator | Action Indicator: Yellow LED |
| Sensing range adjustment | None |
| Switching output | Normally open |
| Output Mode | NPN |
| External input | None |
| Switching frequency | 1kHz |
| Repeatability | ≤2% rated distance |
| Hysteresis | 3 to 10% of rated distance |
| Operating Voltage | 10~30V DC |
| Current Consumption | 25mA |
| Load Current | ≤50mA |
| Insulation Resistance | Above 500MQ (DC500V) charging part between the whole and the housing |
| Dielectric strength | AC500V. Power frequency 50/60Hz, time 60s, between the whole charging part and the shell |
| Vibration Resistance | Frequency :55Hz, amplitude: 1.5mm, time: 240 minutes/axis, direction: three perpendicular axes, sweep cycle time :5 minutes |
| Circuit Protection | Polarity reverse protection/output overload protection/output short circuit protection |
| Operating temperature | -30~+70℃ |
| Operating humidity | 35%~95%RH |
| Enclosure rating | IP67 |
| Connection type | M12/4 pin connector |
| Dimension | M12X57.2mm |
| Material | Copper + Teflon coating |
| Accessories | There is no |
| Weight | 0.05kg |
