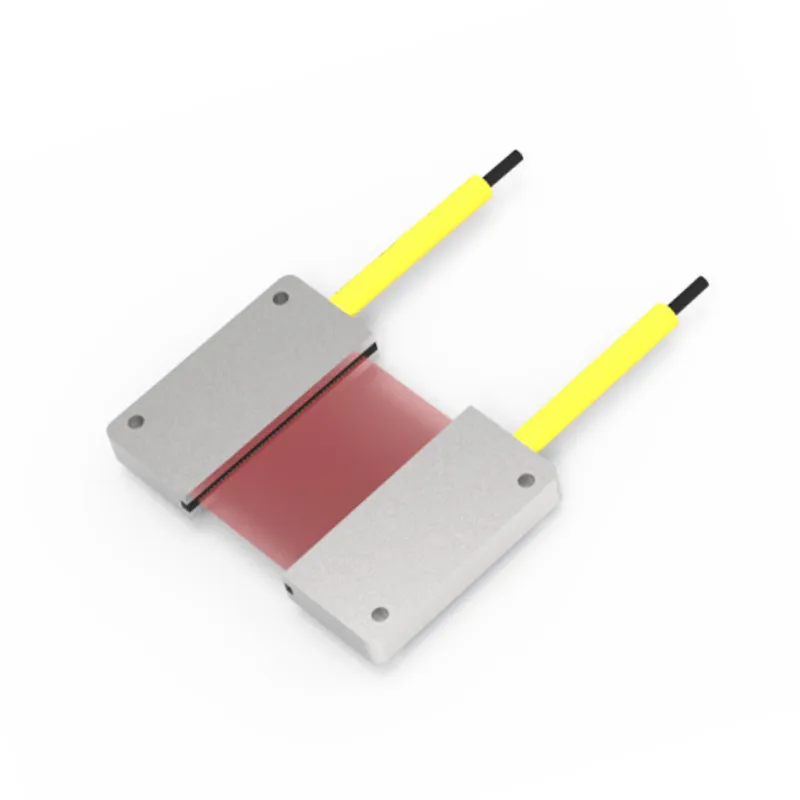

Array Fiber Component PT-30ML
| Ürün Kodu : | PT-30ML |
| Kategori : | Algılama sensörleri, Fiber optik sensörler |
| Etiketler : | PT-30ML |
| Stok : | Stokta Var |
| Model | PT-30ML |
| Working principle | Fiber optic components |
| Optical working principle | Thru-beam |
| Housing style | Right Angle type |
| Fiber head type | Rollers free |
| Sensing distance | With PG1:880mm; With PE1:1220mm |
| Fiber length | 2000mm |
| Fiber diameter | Ø 0.25 mm |
| Fiber arrangement | Raster |
| Core construction | Transmitter: 32, receiver: 32 |
| Integrated lens | No lens |
| Minimum object diameter | Ø 3 mm |
| Bend Radius | 15mm |
| Material | Aluminum +PVC |
| Fiber can be cut short | Can be cut with fiber cutter |
| Accessories | No installation parts |
