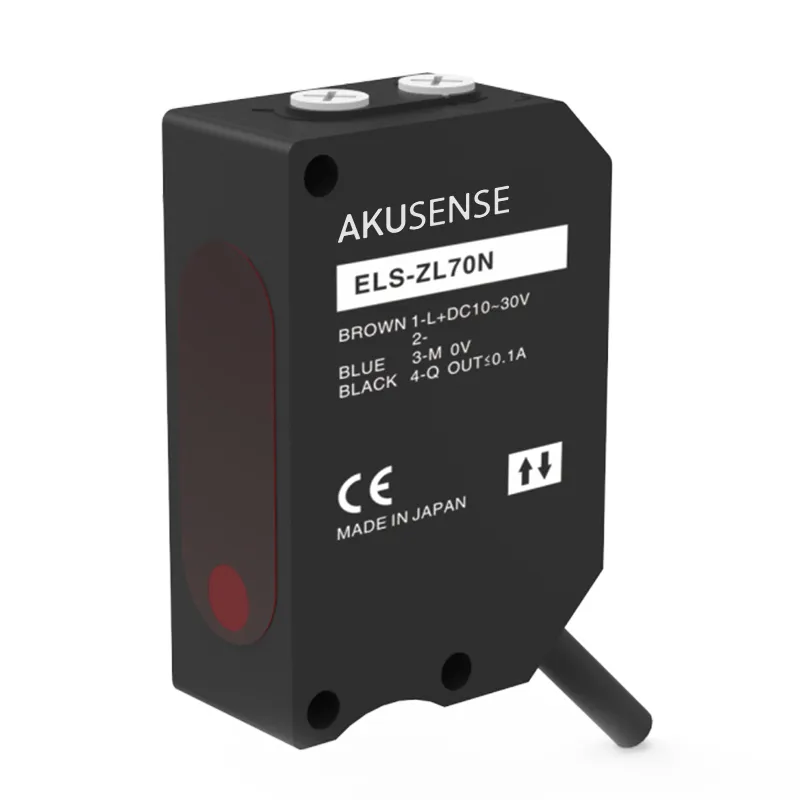

| Model |
ELS-ZL70P |
| Working principle |
Photoelectric sensor |
| Housing style |
Square |
| Optical working principle |
Diffuse reflection |
| Detection Range |
100~700mm |
| Light Source |
Red Laser 650nm, Class 2 |
| Spot Size |
Ø 6.0 mm / 0.20 m |
| Indicator light |
Output function: Orange LED, Operating status: Green LED |
| Sensitivity Adjustment |
4 turns potentiometer |
| Switch Mode |
L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode |
PNP open collector |
| Response Time |
0.7ms |
| Switching frequency |
2.86 kHz |
| Repeatability |
≤5% |
| Hysteresis |
≤5% |
| Operating Voltage |
10~30V DC±10% |
| Current Consumption |
≤35mA |
| Residual Voltage |
≤2.0V (100mA) |
| Load Current |
≤100mA (30VDC) |
| Insulation Resistance |
≥50MΩ (500VDC) between power terminal and housing |
| Withstand Voltage |
1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit |
Short circuit protection/reverse polarity protection |
| Operating temperature |
-10~50℃(without freezing) |
| Storage Temperature |
-10~70℃(no freezing) |
| Operating humidity |
35~85%RH (no condensation) |
| Storage Humidity |
35~95%RH(no condensation) |
| Ambient light |
Incandescent lamp ≤3000 Lux; LED lamp ≤1000 Lux; Sunlight ≤ 10,000 Lux |
| Vibration Resistance |
10~55Hz, amplitude 1.5mm, X, Y, Z axis, 2 hours each |
| Protection rating |
IP67 |
| Maximum Tightening Torque |
0.5 Nm or less |
| Connection Method |
2M/3 Core Cable |
| Dimensions |
15.0 x44.4 x32.2 mm |
| Material |
ABS+ fiberglass |
| Weight |
0.061 kg |
