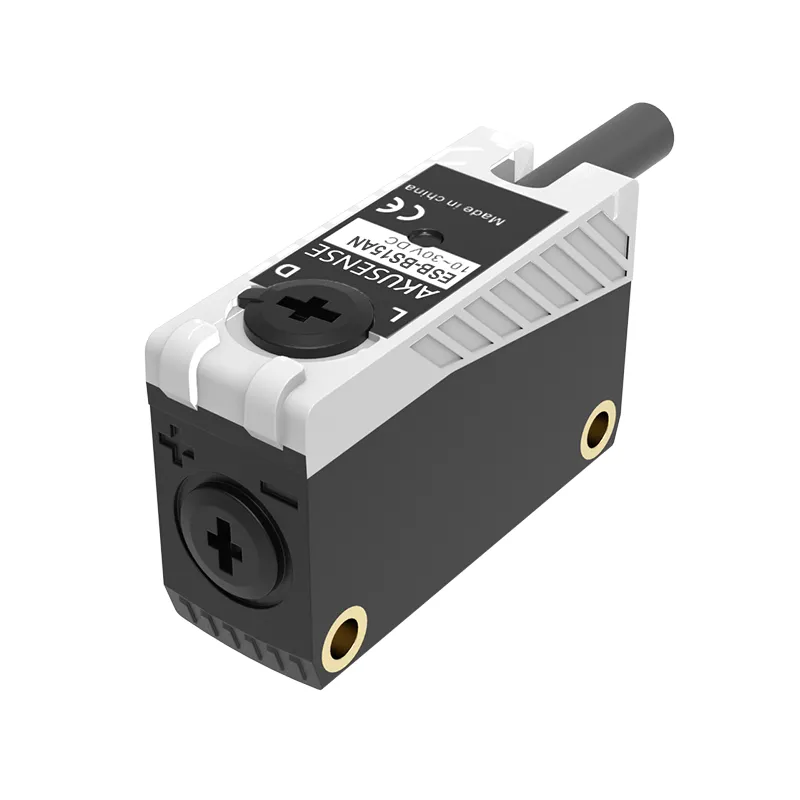

BGS Type (ESB Series) ESB-BS15AN

Ürün Kodu : ESB-BS15AN
Kategori : Algılama sensörleri, Fotosel sensörler
Etiketler : ESB-BS15AN
Stok : Stokta Var
Model ESB-BS15AN
Working principle Photoelectric sensor
Housing style Square
Optical working principle Background suppression diffuse reflection
Detection Range 2~150mm
Spot Size Phi is 2 mm / 150 m
Light Source Red LED 660nm (modulated)
Indicator light There are
Sensitivity Adjustment 6 turns potentiometer
Switch Mode L.on (light entry action) /D.on (light blocking action) can be switched
Output Mode NPN open collector
Response Time ≤1ms
Hysteresis ≤5% (white matte paper)
Operating Voltage 10~30V DC
Current consumed ≤25mA
Residual Voltage < 1.5V
Load Current ≤100mA
Insulation Resistance 20 m Ω
Withstand Voltage 1000VAC (50/60Hz), 1 minute between the power terminal and housing
ProtectiOn Circuit Reverse polarity protection/surge protection/short circuit protection
Operating temperature -25℃~+55℃
Storage Temperature -30~+70℃
Operating humidity 35~85%RH (no condensation)
Storage Humidity 35 to 95%RH (no condensation)
Ambient light Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux
Vibration Resistance 10~50Hz, 0.5mm amplitude, 2 hours in each direction X, Y and Z
Protection rating IP67
Maximum Tightening Torque 0.5 Nm or less
Connection Method 2M/ 4-core cable 4mm diameter
Dimensions 31*20*11mm
Material PBT+ glass fiber (housing); PMMA (lens)
Weight 0.05 kg
Accessories Screwdriver, bracket, screws and nuts
