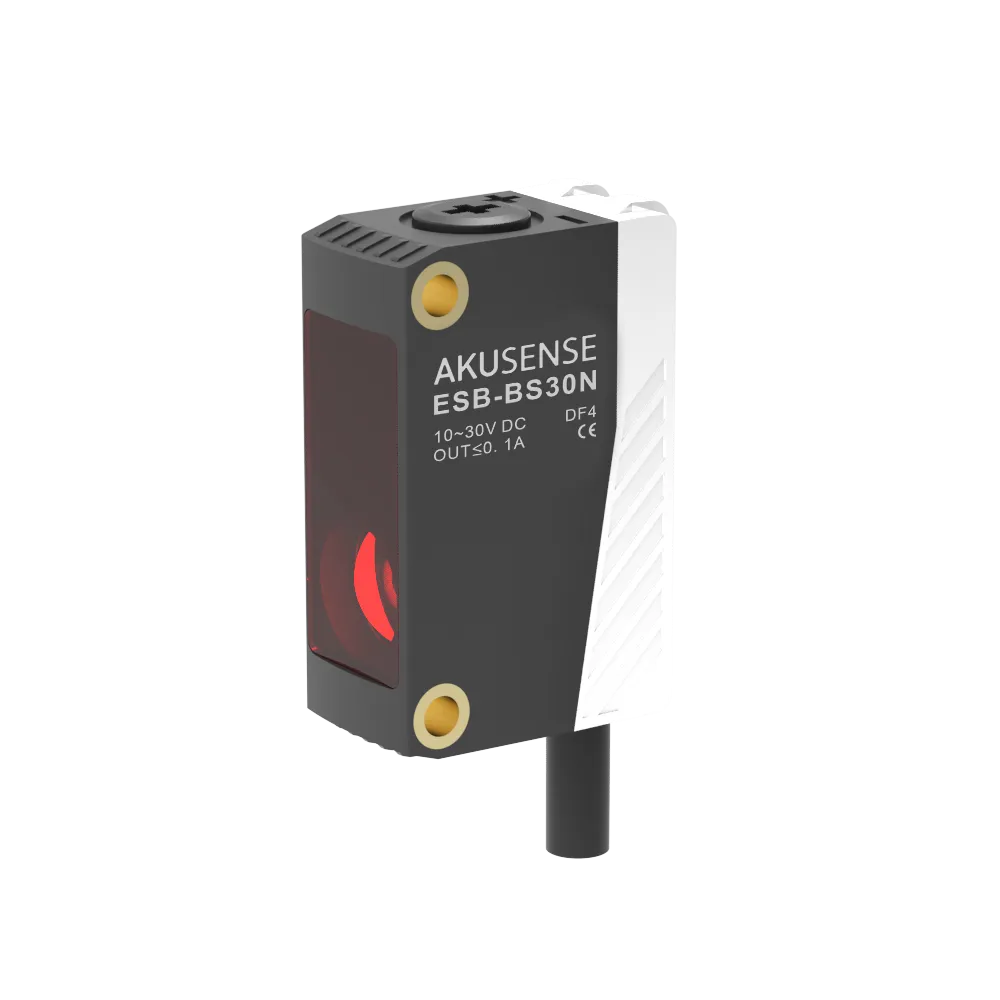

BGS Type (ESB Series) ESB-BS30N
| Ürün Kodu : | ESB-BS30N |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | ESB-BS30N |
| Stok : | Stokta Var |
| Model | ESB-BS30N |
| Working principle | Photoelectric sensor |
| Housing style | Square |
| Optical working principle | Background suppression diffuse reflection |
| Detection Range | 2~300mm (white matte paper) |
| Spot Size | Ø 8 mm / 300 mm |
| Light Source | Red LED 660nm (modulated) |
| Indicator light | Working indicator light: green; Action light: red |
| Sensitivity Adjustment | 6 turns potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode | NPN open collector |
| Response Time | ≤1ms |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤20mA |
| Residual Voltage | < 1.5V |
| Load Current | ≤100mA |
| Insulation Resistance | 20 m Ω |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/surge protection/short circuit protection/interference light protection |
| Operating temperature | -10~70℃(without freezing) |
| Storage Temperature | -25~80℃(without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Vibration Resistance | 10~50Hz, 0.5mm amplitude, 2 hours in each direction X, Y and Z |
| Protection rating | IP67 |
| Connection Method | 2M/ 4-core cable 4mm diameter |
| Dimensions | 31*20*11mm |
| Material | PBT+ glass fiber (housing); PMMA (lens) |
| Weight | 0.05 kg |
| Accessories | Screwdriver |
