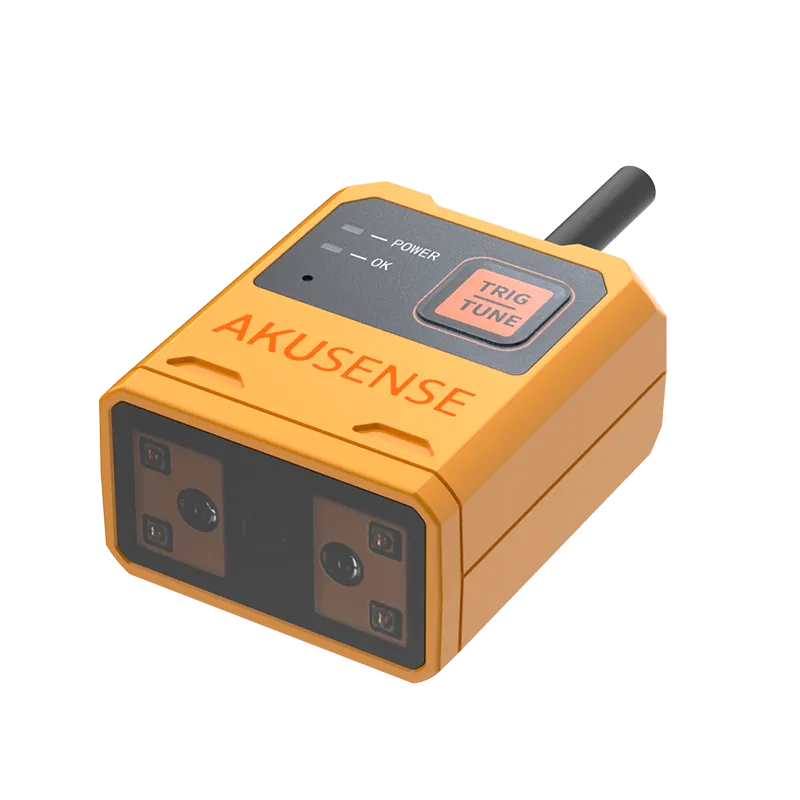

Code Reader RCD-AI100-F06WD
| Ürün Kodu : | RCD-AI100-F06WD |
| Kategori : | Görsel kontrol ve tanımlama, Kod okuyucular |
| Etiketler : | RCD-AI100-F06WD |
| Stok : | Stokta Var |
| Model | RCD-AI100-F06WD |
| Working principle | CMOS |
| Enclosure type | Square |
| Detection Range | Prime focus: 180mm Code 39(5 mil):85 to 220 mm, Code 128(10 mil):51 to 415 mm QR Code(15 mil):42~313 mm, Data Matrix(10 mil): 60~150 mm |
| Focus Adjustment Method | Prime Focus |
| Resolution | 1280×800 |
| Light Source | Polarized white light |
| Code Type | One dimensional code: Code39 Code93, Code128, EAN - 8, EAN 13, Interleaved 2 of 5, UPC, Pharmacode; QR code: QR code,DataMatrix |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | 2 green points of light indicating the scanning position center area, 2 status leds (read status, power status) and buzzer |
| Image Sensor Size | 3μm×3μm |
| Maximum Reading Speed | 60 per second |
| Exposure Time | 20μs~100000μs |
| Gain | 0dB~255dB |
| Operating Voltage | 24 VDC/USB5V |
| Power Consumption | 5W |
| Output type | Two non-isolated inputs; Two non-isolated outputs |
| Communication Protocol | TCP Server,TCP Client,ModBus TCP,ModBus RTU,Profinet,Ethernet/IP,MELSEC/SLMP,Fins,Seria |
| Communication Interface | RS232, RJ45, USB |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20-70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP54 |
| Connection Method | Two kinds of wire: 1, through DB15 Pu flexible wire and intelligent reader connection, a total output of 3 physical interfaces: network port, serial port, IO port; 2. Connect with intelligent reader through DB15 universal flexible cable, output 2 physical |
| Dimensions | 49x25.5x42.5mm |
| Weight | About 80g |
| Accessories | HDB15P-M-ETH-3M (network port 3 m soft) or HDB15P-M-USB-3M (USB port 3 m soft) L-shaped mounting bracket, screw package |
