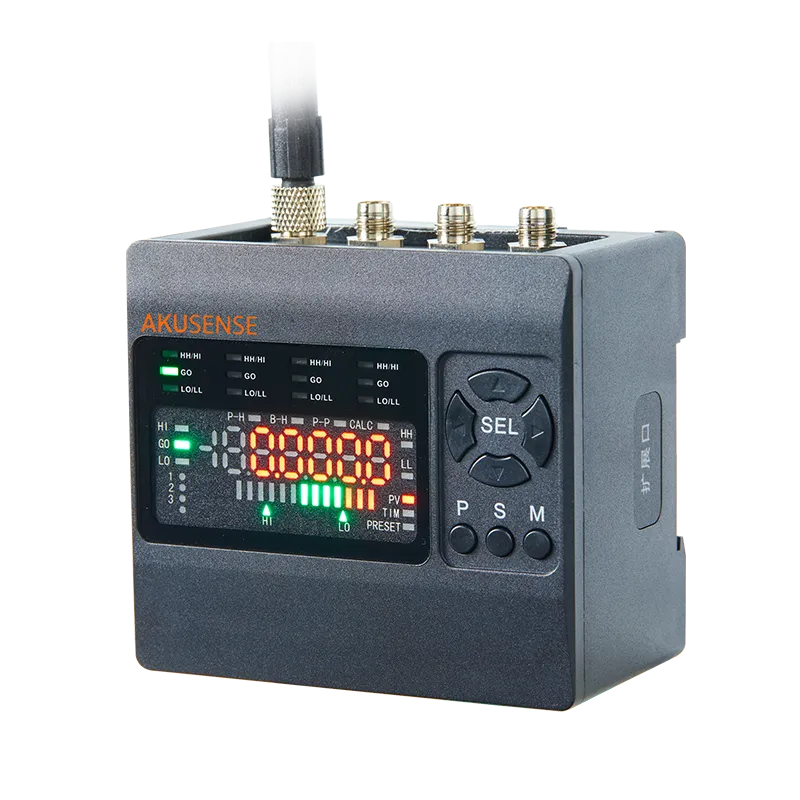

Contact displacement sensor CR-M01
| Ürün Kodu : | CR-M01 |
| Kategori : | Mesafe sensörleri, Temaslı mesafe sensörleri |
| Etiketler : | CR-M01 |
| Stok : | Stokta Var |
| Model | CR-M01 |
| Housing | square |
| Resolution | 5μm/1μm/0.5μm/0,2μm(displayed according to type of sensor head) |
| Communication Protocol | ModBus RTU |
| Response Time | 50/100/500/1000ms(changed in function parameter Settings) |
| Operating Voltage | 12~24VDC |
| Operating temperature | -10~60℃(without freezing) |
| Operating humidity | 35~80% RH (non-condensing) |
| Dimension | 78.3x87.3x51.4mm |
| Material | Body: ABS Key: ABS panel: MMA cable: PVC |
| Weight | The main control module is about 201.6g |
| Accessories | The main controller can be equipped with up to 4 sub-controllers and up to 20 sensor heads, each sensor head needs to be equipped with 1 CA08FF-S4F2C for use |
| Output Mode | RS232/RS485 |
| Display range | -199.9999 to 199.9999 |
| Power Consumption | ≤240mW(missed sensor, missed tap control module) |
| Control the input | Timing, preset, reset, channel input, no voltage input |
| Controls the output | NPN output, maximum output 20mA |
| Number of sensors that can be connected | 4 |
| Expandable number | 1 main control module, expandable up to 4 sub-control modules |
