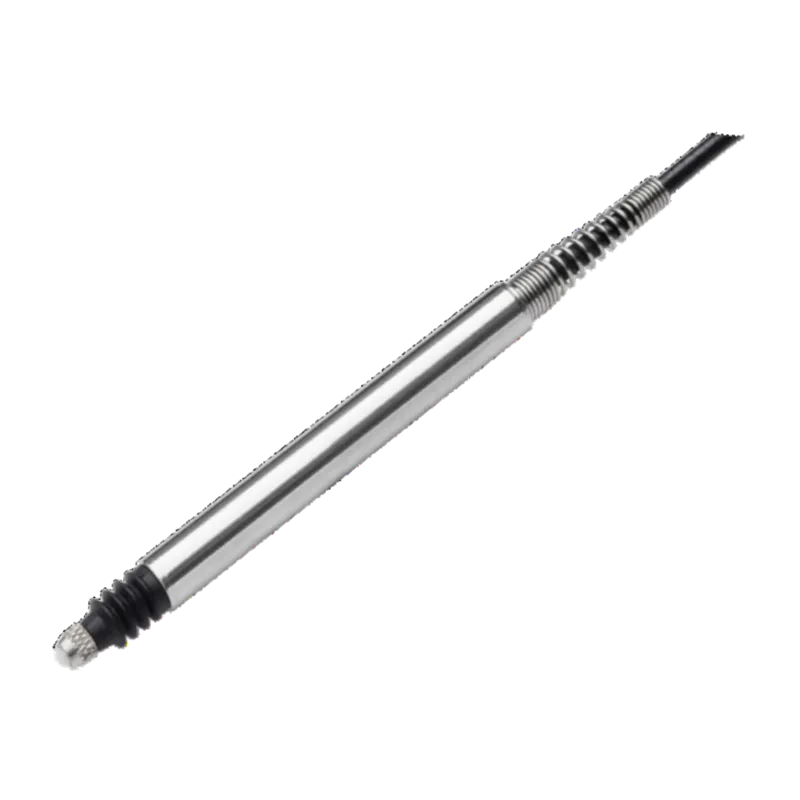

Contact displacement sensor MLA-P10R01A
| Ürün Kodu : | MLA-P10R01A |
| Kategori : | Mesafe sensörleri, Temaslı mesafe sensörleri |
| Etiketler : | MLA-P10R01A |
| Stok : | Stokta Var |
| Model | MRA-P10R01A |
| Working principle | Differential transformer |
| Housing | Pen type |
| Optical working principle | Rebound style |
| Measuring Range | 10mm |
| Precision | ±0.25% F.S |
| Resolution | ≤0.1μm, the communication output is 16 bit |
| Communication Protocol | ModBus RTU |
| Response Time | 100ms |
| Sampling Frequency | 10Hz |
| Operating Voltage | Two-wire, 15 to 28V DC |
| Current Consumption | < 15mA |
| Operating temperature | -25℃~+85℃(without freezing) |
| Operating humidity | 10 ~ 80% RH (no condensation) |
| Enclosure rating | IP64 |
| Connection type | φ14/5 pin flight insertion signal transmitter |
| Dimension | φ8x151.3mm |
| Material | Stainless steel |
| Weight | 130g |
| Accessories | Mount a fixing bracket |
| Output Mode | 4 ~ 20mA analog output |
