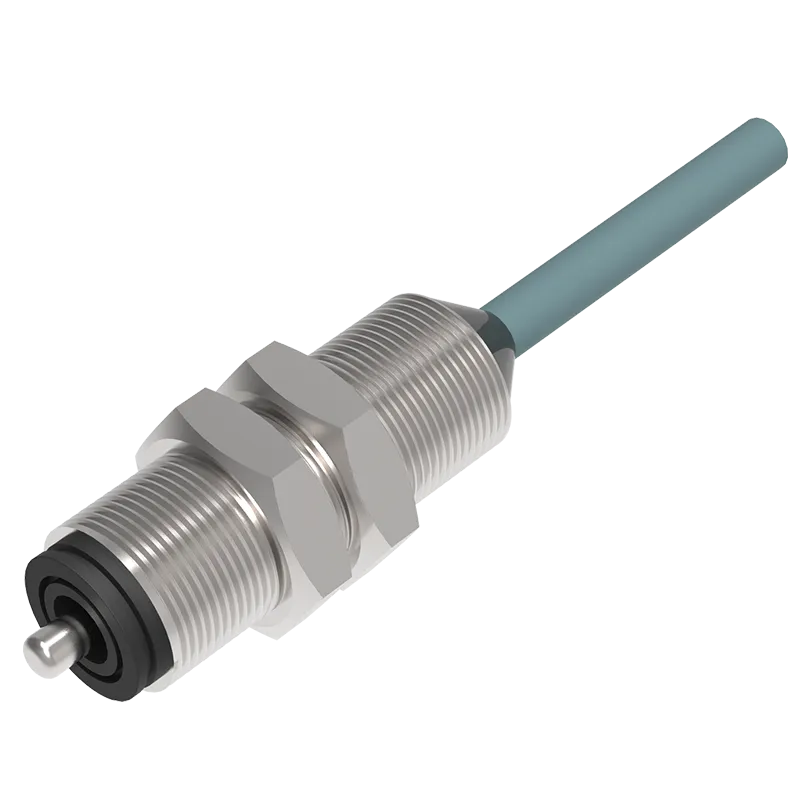

Contact Sensor MR-T8
| Ürün Kodu : | MR-T8 |
| Kategori : | Algılama sensörleri, Temaslı sensörler |
| Etiketler : | MR-T8 |
| Stok : | Stokta Var |
| Model | MR-T8 |
| Working principle | Contact sensor |
| Housing | Cylindrical |
| Detection Distance | 1.5 mm |
| Pre-travel(PT) | 0.4 ~ 0.7 mm |
| Indicator | No indicator light |
| Position repeatability | + 0.001 mm |
| Operating Frequency | 120 reps/min |
| Hysteresis | Less than 0.1mm |
| Output type | NPN Normally open (NO) |
| Output Current | ≤15mA |
| Operating Voltage | 5~24VDC |
| Current Consumption | ≤15mA |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Insulation strength | 250VDC≥20MΩ |
| Dielectric strength | AC1000V for 1 minute |
| Enclosure rating | IP69 |
| Operating Force | 0.3 N |
| Travel | 1.5 mm |
| Connection | 1M/3 core cable |
| Max. tightening torque | M8 nut mounting torque 5N·m |
| Dimensions | 11.5 x10x24mm |
| Material | SUS303 |
| Weight | About 15.8g |
| Accessory | Nut |
