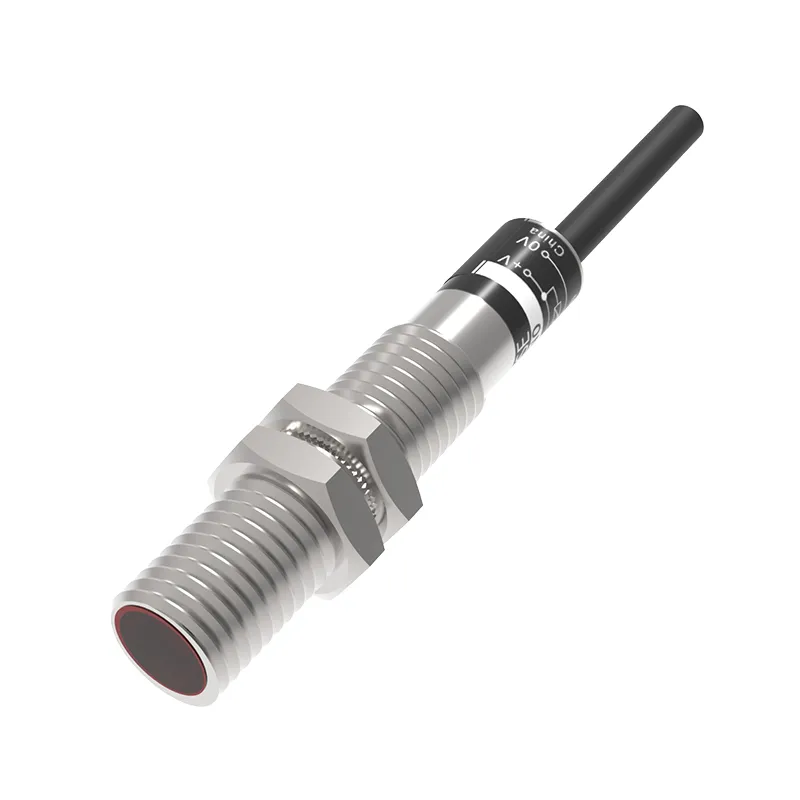

Cylindrical Type PM08-D03NO
| Ürün Kodu : | PM08-D03NO |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | PM08-D03NO |
| Stok : | Stokta Var |
| Model | PM08-D03NO |
| Working principle | Photoelectric sensor |
| Housing style | Cylinder Shape |
| Optical working principle | Diffuse reflection |
| Detection Range | 30mm(white paper 30x30mm) |
| Spot Size | Not applicable (infrared light) |
| Detected Object | White paper 30x30mm |
| Light Source | Infrared light 940nm |
| Indicator light | No display |
| Sensitivity Adjustment | None |
| Switch Mode | L.on (into light action) |
| Output Mode | NPN open collector |
| Response Time | 3ms |
| Switching frequency | 0.67kHz |
| Repeatability | 5% |
| Hysteresis | ≤20% |
| Operating Voltage | 12~24V DC±10% |
| Current consumed | ≤30mA |
| Residual Voltage | ≤2.0V (50mA) |
| Load Current | 50mA |
| Insulation Resistance | ≥20MΩ (500VDC) between power terminal and housing |
| Withstand Voltage | 500VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Short circuit protection/reverse polarity protection/anti-mutual interference protection |
| Operating temperature | -25~55℃without freezing) |
| Storage Temperature | -30℃~+70℃(without freezing) |
| Operating humidity | 30~85%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux; LED lights ≤1000 Lux |
| Vibration Resistance | 10~55Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Protection rating | IP65 |
| Connection Method | 2M/3 Core Cable |
| Dimensions | M8x42. 0 mm |
| Material | Stainless steel |
| Weight | About 0.08kg |
| Accessories | Nut M8x1 |
