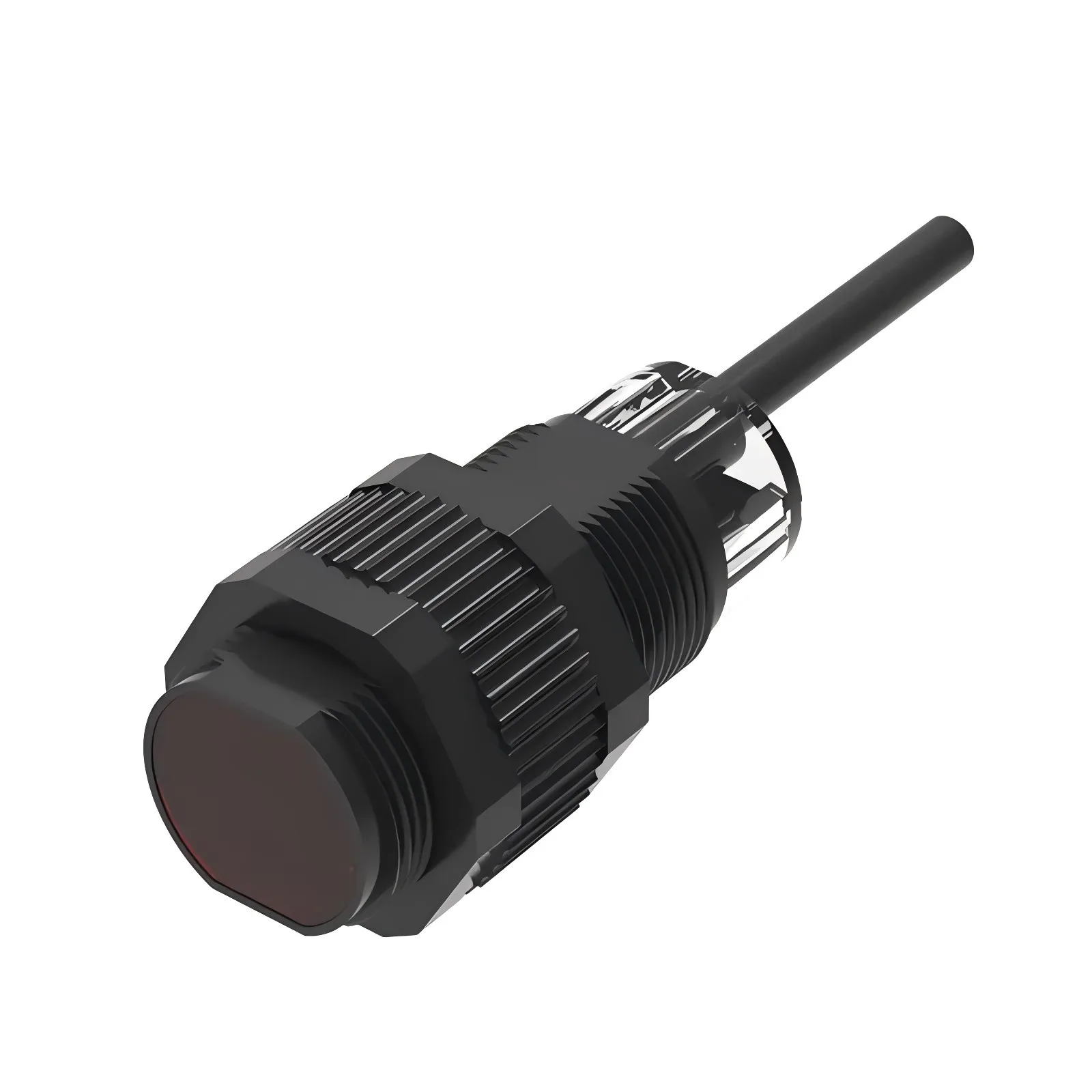

Cylindrical Type PSM18-DV40P
| Ürün Kodu : | PSM18-DV40P |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | PSM18-DV40P |
| Stok : | Stokta Var |
| Model | PSM18-DV40P |
| Working principle | Photoelectric sensor |
| Housing style | Cylinder Shape |
| Optical working principle | Diffuse reflection |
| Detection Range | 100~400mm |
| Spot Size | Ø 36.0 mm / 0.40 m |
| Detected Object | 7mm |
| Light Source | Infrared LED |
| Indicator light | Power status: Green LED, running status: red LED |
| Sensitivity Adjustment | 1 turn potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode | PNP open collector |
| Response Time | 2ms |
| Switching frequency | 1kHz |
| Repeatability | 5% |
| Hysteresis | ≤20% |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤25mA |
| Residual Voltage | ≤1.5V (120mA) |
| Load Current | ≤120mA (30VDC) |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Withstand Voltage | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -15~55℃(without freezing) |
| Storage Temperature | -25~80℃(without freezing) |
| Operating humidity | 30~90%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux; LED lights ≤1000 Lux |
| Vibration Resistance | 10~50Hz, 0.5mm amplitude, 2 hours in each direction X, Y and Z |
| Protection rating | IP67 |
| Connection Method | 2M/ 4-core cable |
| Dimensions | M18X43. 5 mm |
| Material | PC |
| Weight | 0.05 kg |
| Accessories | Nut M18x1 |
