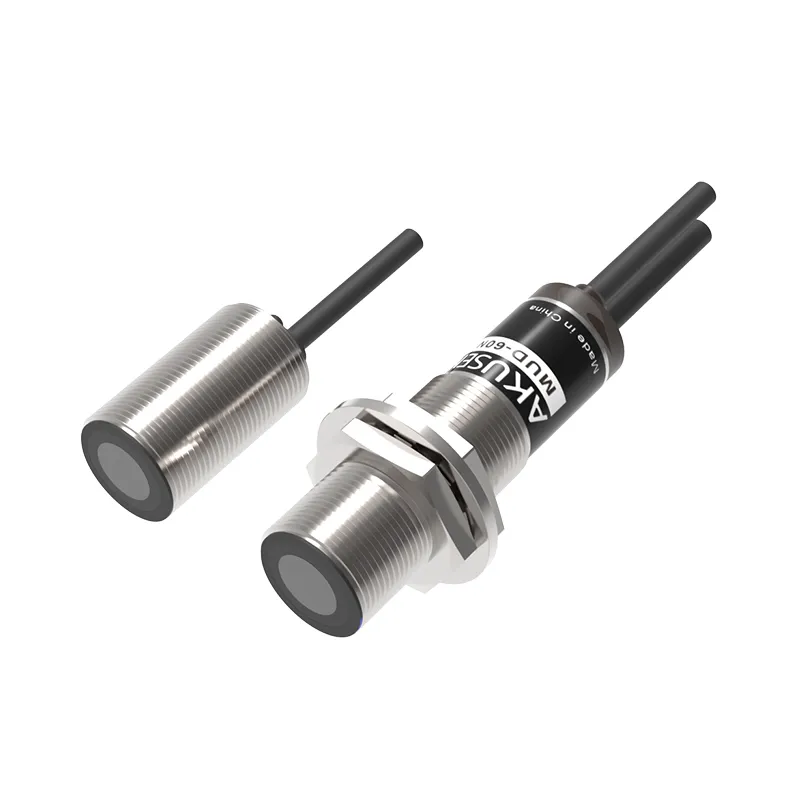

Double Sheet Detection Sensor MUD-60N-400
| Ürün Kodu : | MUD-60N-400 |
| Kategori : | Ölçüm sensörleri, Çift sac sensörleri |
| Etiketler : | MUD-60N-400 |
| Stok : | Stokta Var |
| Model | MUD-60N-400 |
| Operating Principle | Ultrasonic Detection |
| Enclosure Shape | Cylindrical (pair of sensors) |
| Detection Method | Diffuse Reflection |
| Detection Range | 20~40mm best :20mm+2mm |
| Divergence Angle | ±45° |
| Ultrasonic Frequency | 400kHz |
| Indicator light | Green light: single sheet, green light flashing: teaching, red light: double/multiple sheet, red light flashing: no paper |
| Output Mode | NPN/ Output: lmax=200mA (-V+2V) |
| Response Time | Auto run mode is 2.5ms |
| Switching frequency | 20Hz |
| Operating Voltage | 20~30VDC |
| Operating current | ≤50mA |
| Load Current | ≤200mA |
| Maximum Ripple | Plus or minus 10% |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Temperature Compensation | None |
| Working Temperature | +5~+60℃ |
| Protect degree | IP65 |
| Connection Method | 2m PUR cable |
| Dimensions | M18x1x60.0mm + M18x1x30.0mm |
| Material | Nickel-copper plating |
| Weight | 0.4 kg |
| Accessories | Plastic nut M18x1 |
| Hysteresis | <750ms |
| Residual Voltage | 2V |
