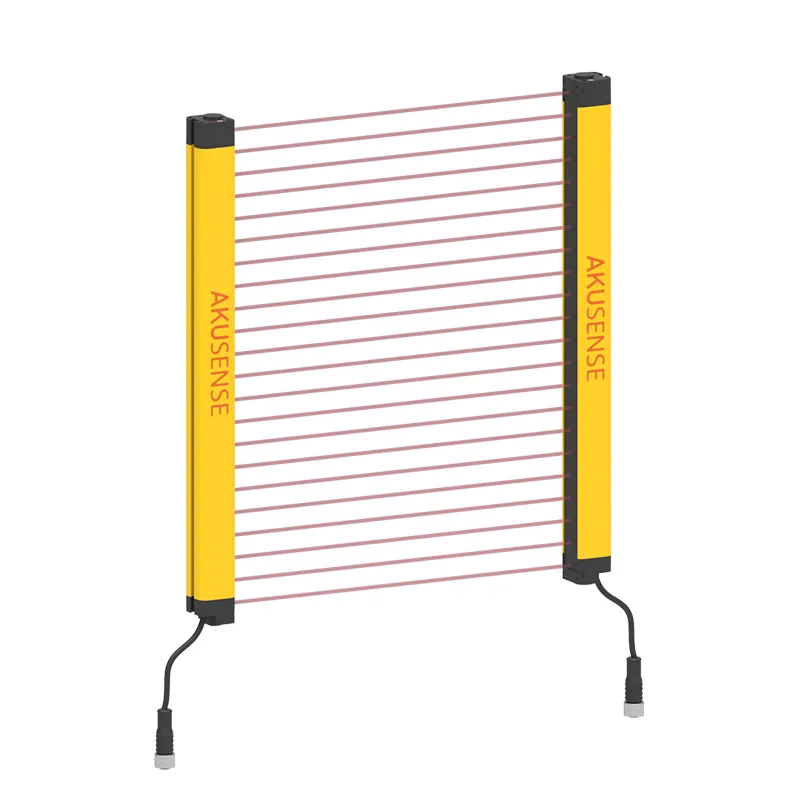

Economical Type BSL20-T1206PC
| Ürün Kodu : | BSL20-T1206PC |
| Kategori : | Algılama sensörleri, Işık perdeleri |
| Etiketler : | BSL20-T1206PC |
| Stok : | Stokta Var |
| Model | BSL20-T1206PC |
| Working principle | Photoelectric sensor |
| Housing | Array |
| Optical working principle | Thru-beam |
| Light Source | Infrared light, 860nm(modulated) |
| Beam Pitch | 20mm |
| Number of beams | 12 beams |
| Protection Height | 254.6mm |
| Protection Distance | 0.1~6m |
| Mini. detectable object | Opaque body above φ28mm |
| Output Mode | PNP |
| Synchronization Type | Line Synchronization |
| Response Time | ≤20ms |
| Operating Voltage | 12~24VDC±10% |
| Current Consumption | Launch end < 200mA; Receiving end < 200mA |
| Power Consumption | 3~8W |
| Residual Voltage | ≤2.0V (150mA) / < 2.0V |
| Load Current | ≤150mA |
| Insulation Resistance | ≥100MΩ (500VDC) / ±500V 50/60Hz 60s between the power terminal and housing |
| Dielectric strength | 500VAC (50/60Hz), 1 minute between the power terminal and housing /±500V 50/60Hz 60s |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection/surge protection |
| Operating temperature | -10~55℃(without freezing) |
| Storage Temperature | -10~55℃(without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH (no condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; LED lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10 to 55Hz/150Hz, double amplitudes 1.5mm, X/Y/Z axis, 2 hours each |
| Protection class | IP65 |
| Connection type | Cable |
| Dimensions | 214.6~1274.6x30x29.65mm |
| Material | Aluminum |
| Weight | 0.62~6.37kg |
| Accessories | Right Angle bracket, M12/5 pin plug cable x2 |
