Yeni

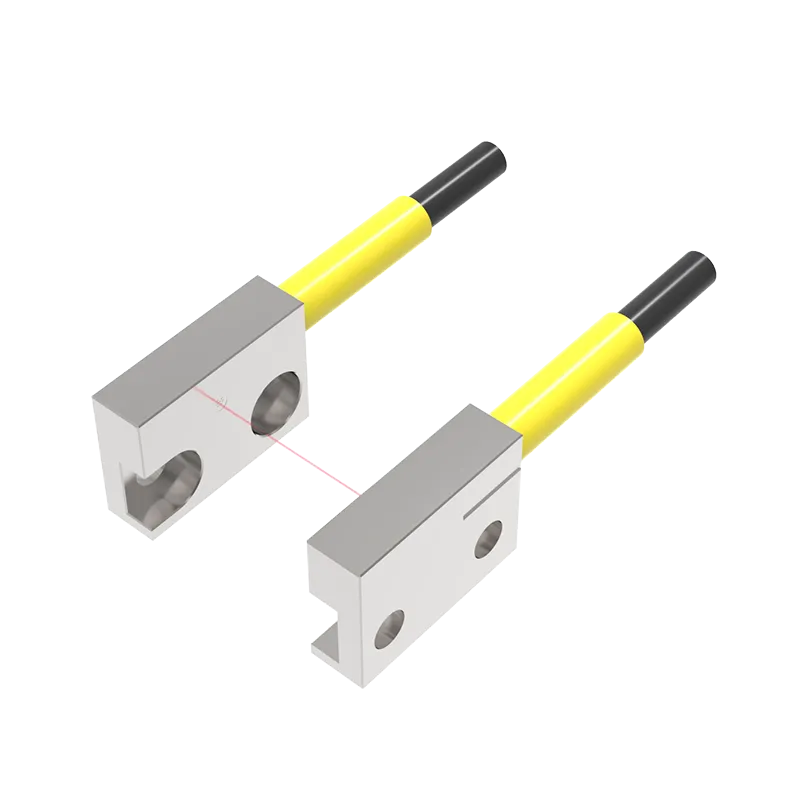

Flat Bracket Fiber Component PT-FZ8
| Ürün Kodu : | PT-FZ8 |
| Kategori : | Algılama sensörleri, Fiber optik sensörler |
| Etiketler : | PT-FZ8 |
| Stok : | Stokta Var |
| Model | PT-FZ8 |
| Working principle | Fiber optic components |
| Optical working principle | Thru-beam |
| Housing style | Right Angle type |
| Fiber head type | Rollers free |
| Sensing distance | With PG1:730mm; With PE1:1020mm |
| Fiber length | 1000mm |
| Fiber diameter | Launching end: Ø1mm; Receiving end: Ø0.25mm |
| Fiber arrangement | Standard |
| Core construction | Transmit end: 1, receive end: 7 |
| Integrated lens | No lens |
| Minimum object diameter | Ø 0.1 mm |
| Bend Radius | 2mm |
| Material | Aluminum + polyethylene |
| Fiber can be cut short | Can be cut with fiber cutter |
| Accessories | No installation parts |
