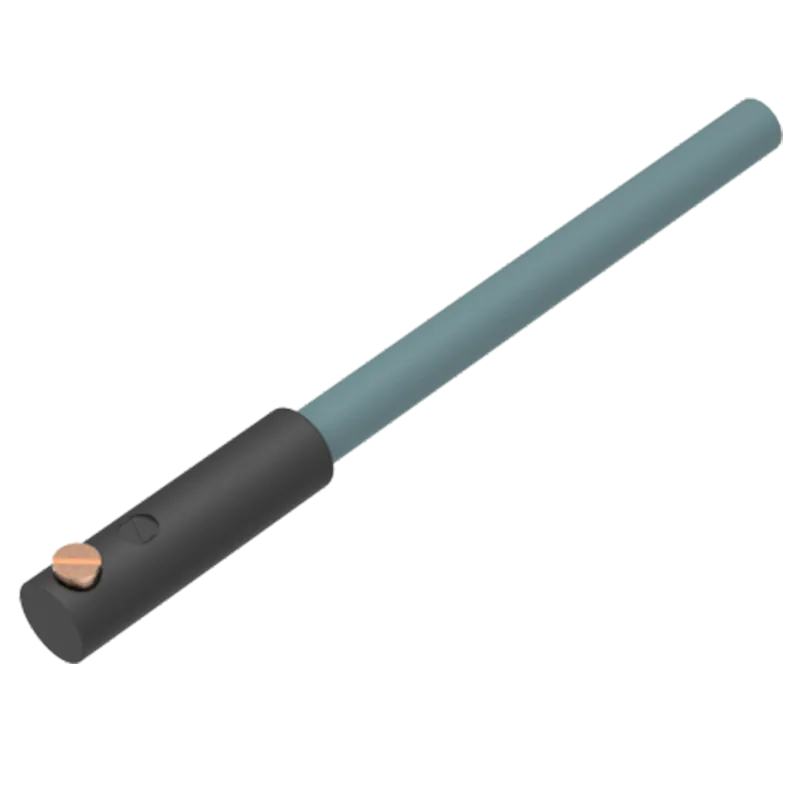

High precision cylinder sensor MR-C7-S
| Ürün Kodu : | MR-C7-S |
| Kategori : | Algılama sensörleri, Silindir sensörleri |
| Etiketler : | MR-C7-S |
| Stok : | Stokta Var |
| Model | MR-C7-S |
| Operating Principle | Magnetic |
| Shell Style | Square |
| Applicable slot type | Type C |
| Detect magnetic poles | S pole |
| Magnetic Sensitivity | 4.5 ~ 6 mt |
| Indicator light | About 100mm from the main body |
| Output Mode | NPN normally open (N.O.) (ON when approaching) |
| Operating Voltage | 5~24V DC |
| Output Current | ≤12mA |
| Power Consumption | ≤12mA |
| Response Speed | 5μs |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP67 |
| Connection Method | 1M/3 core cable |
| Dimensions | Φ4x14.5mm |
| Material | GF reinforced PBT: black |
| Weight | about11.3g |
