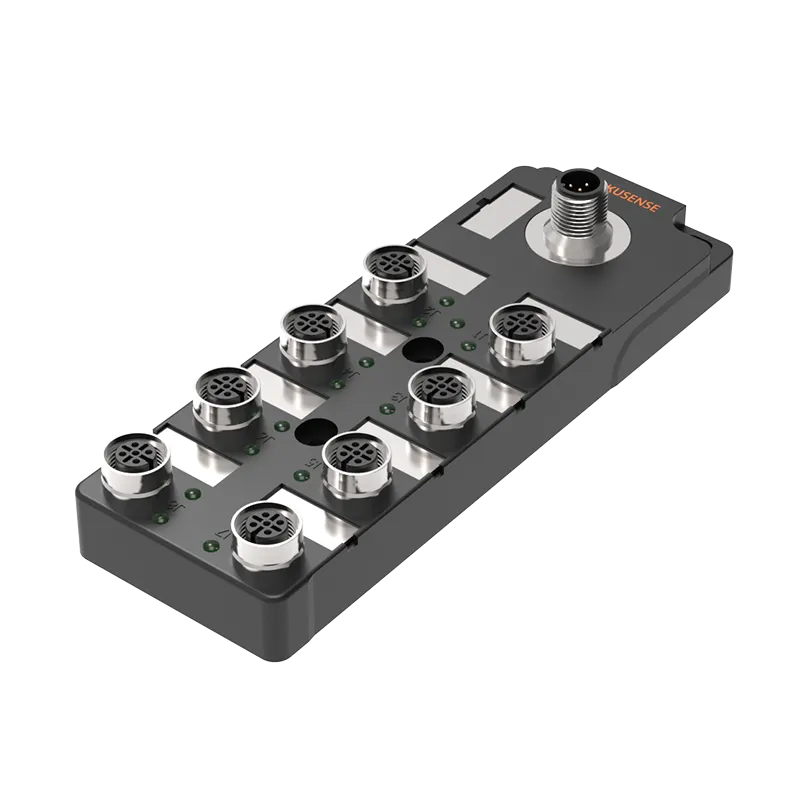

IO Bus CIO100-M12-DI16P
| Ürün Kodu : | CIO100-M12-DI16P |
| Kategori : | Ağ ve bağlantı, Ip67 i/o modülleri |
| Etiketler : | CIO100-M12-DI16P |
| Stok : | Stokta Var |
| Model | CIO100-M12-DI16P |
| Shell Material | PA6 + GF |
| Shell color | Black |
| Ptotect degree | IP67, epoxy full potting |
| External dimensions | 155mm×53mm×28.7mm |
| Weight | 217g |
| Operating temperature | -25℃~70℃ |
| Storage/transport temperature | -40℃~85℃ |
| Operating humidity | 5%~95% |
| Storage/transport humidity | 5%~95% |
| Operating atmospheric pressure | 80KPa~106KPa |
| Storage/transport atmospheric pressure | 80KPa~106KPa |
| I/O port fastening torque | M12:0.5Nm |
| Application environment | Conforms to EN-61131 |
| Vibration testing | Comply with IEC60068-2 |
| Shock testing | Comply with IEC60068-27 |
| Free fall testing | Comply with IEC60068-32 |
| Electromagnetic compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 |
| Certification | CE,RoHS |
| Installation hole specifications | Φ4.3mm × 4 |
| Number of IO-Link ports | 1 x equipment |
| Minimum cycle | 3 ms |
| Number of inputs, outputs | 16 inputs |
| Rated operating voltage | 18~30V DC |
| Maximum load current (sensor) | 200 mA |
| Total current UI | < 1.6A |
| Input polarity | PNP |
| Indicator light -I/O | Green: The channel signal is normal. Red: The port is faulty |
| Indicator light -RUN | Green: The communication is down. Blinking green: The communication is normal. Red: The communication is interrupted |
| IO-LINK | Class A |
| Indicator Light -PWR | Green: The power supply to the module is normal; Off: The power supply to the module is not connected |
