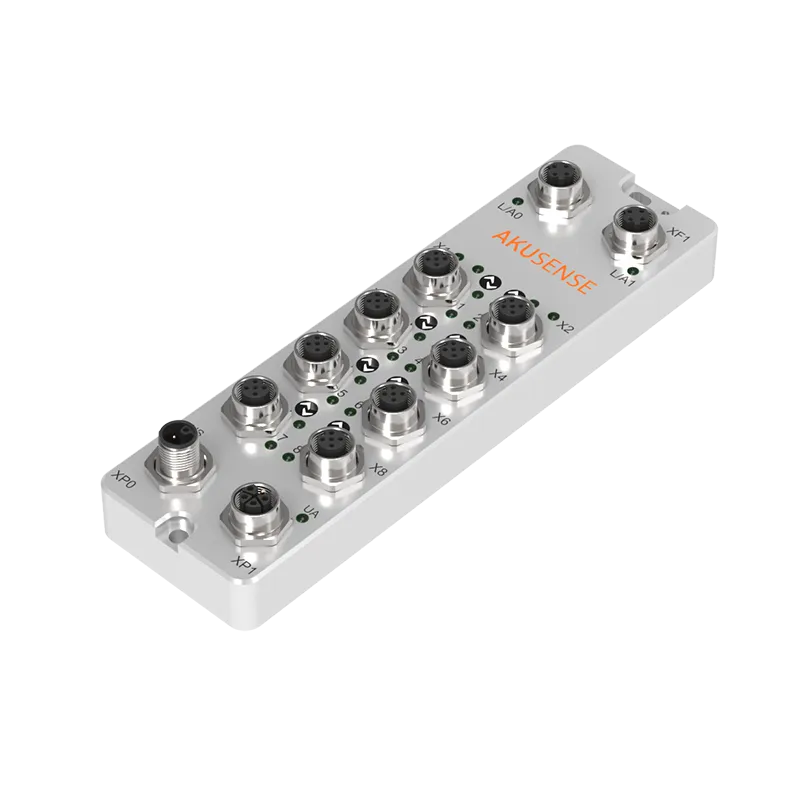

| Model |
CIO200-PNIO-8A |
| Shell Material |
Aluminum alloy |
| Shell color |
Metallic silver primary color |
| Ptotect degree |
IP67, epoxy full potting |
| External dimensions |
205mm×60mm×34.4mm |
| Weight |
515g |
| Operating temperature |
-25℃~70℃ |
| Storage/transport temperature |
-40℃~85℃ |
| Operating humidity |
5%~95% |
| Storage/transport humidity |
5%~95% |
| Operating atmospheric pressure |
80KPa~106KPa |
| Storage/transport atmospheric pressure |
80KPa~106KPa |
| I/O port fastening torque |
M12:0.5Nm |
| Application environment |
Conforms to EN-61131 |
| Vibration testing |
Comply with IEC60068-2 |
| Shock testing |
Comply with IEC60068-27 |
| Free fall testing |
Comply with IEC60068-32 |
| Electromagnetic compatibility (EMC) |
Comply with IEC61000-4-2,-3,-4 |
| Certification |
CE,RoHS |
| Installation hole specifications |
Φ4.5mm×1 ；Φ5.5mm×1 |
| Input polarity |
PNP |
| Indicator light -I/O |
Green: The channel signal is normal. Red: The port power supply is short-circuited |
| Indicator Light -PWR |
Green: The power supply of the module is normal. Red: The power supply of the module is reversed |
| Connection Method |
2 × M12 D-code; 4- core hole holder; |
| Physicallayer |
Ethernet |
| Transmission speed |
10/100 Mbps, Full duplex |
| Characteristics |
Compliant with protocol features |
| Alarm function |
Diagnostic alarm, process alarm |
| Minimum cycle time |
1ms |
| Communication port fastening torque |
M12:0.5 Nm |
| Power supply connection method |
M12, 5-core, L-code, male/female head |
| SSystem power supply voltage us |
18 to 30 VDC (type.24VDC) |
| Auxiliary power supply voltage ua |
18 to 30 VDC (type.24VDC) |
| Total current Is |
12A |
| Total current Ia |
12A |
| Static operating current Ic |
≤150mA |
| Power reverse protection |
There are |
| Number of main station ports |
Up to 8 ports can be configured |
| How the master station is connected |
M12, 5-core, A-code, female head |
| Communication rate |
COM1:4.8KBps; COM2:38.4KBps; COM3:230.4KBps |
| Port voltage L+ |
type.24VDC (via US) |
| Port current L+ |
2A (via US) |
| Master Station - Slave station communication distance |
≤20 m |
| Enter quantity |
8 way, adaptive |
| Signal "0" voltage |
0.3 ~ 5 VDC |
| Signal "1" voltage |
12~30VDC |
| Input current |
type.5mA (via US) |
| Number of outputs |
8 way, adaptive |
| Output port location |
X1~X8 |
| Output Current |
Single channel 2A (via UA) |
| Port protection |
Power supply short circuit protection, power supply port overload protection |
| Indicator light -LINK |
Green: The link is normal; Yellow flash: Link is normal, data communication is normal; Off: The link is not established |
| Indicator light -IO-LINK |
Green: port operation (running) status; Green fast blinking: The port is being connected or an incorrect device is running. Green slow blinking: the port is in the pre-operation state. Green Off: The port is closed |
| Communication Protocol |
ProfiNet protocol |
| Indicator light -SF |
Red: Module failure |
| Indicator light -BF |
Red: Internal error; Red blinking: device name /IP address / The module group status is incorrect |
