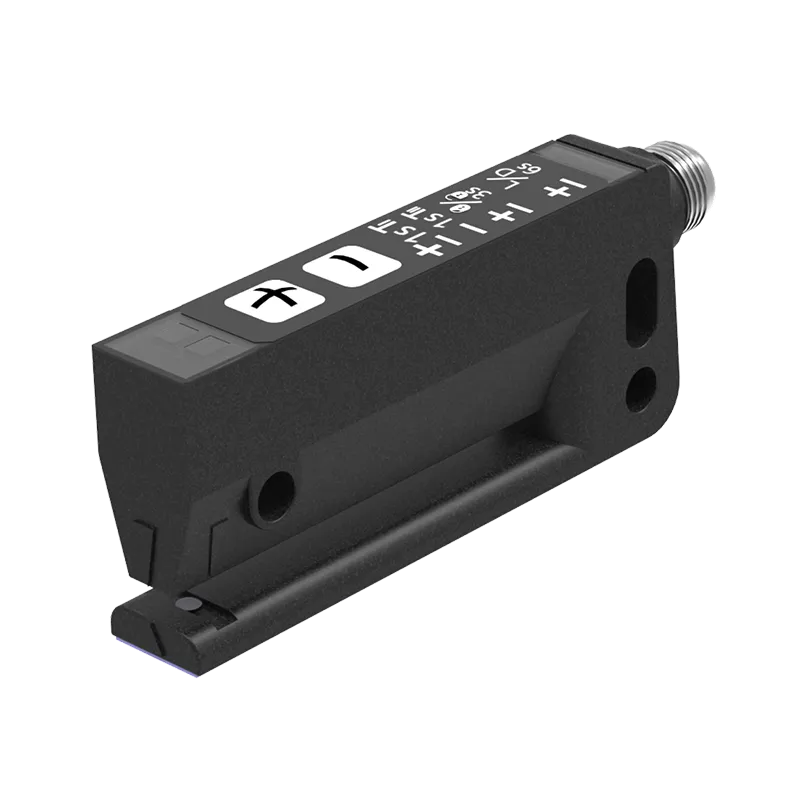

Label Detection Sensor KIM07-0304P
| Ürün Kodu : | KIM07-0304P |
| Kategori : | Ölçüm sensörleri, Etiket algılama sensörleri |
| Etiketler : | KIM07-0304P |
| Stok : | Stokta Var |
| Model | KIM07-0304P |
| Working principle | Photoelectric sensor |
| Housing style | Shape U |
| Optical working principle | Through-beam |
| Light Source | Infrared LED, 940nm |
| Slot Width | 3mm |
| Slot depth | 42mm |
| Detecting object | 2mm (minimum label gap) 2mm (minimum label length) |
| Indicator light | Output function: Red LED, operational status: Green LED |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Output Mode | PNP collector open |
| Response Time | 0.02ms |
| Switching frequency | 100kHz |
| Repeat accuracy | ±0.02mm |
| Hysteresis | ≤0.02mm |
| Operating Voltage | 12~24V DC±10% |
| Power Consumption | ≤40mA |
| Residual Voltage | ≤2V |
| Load Current | ≤100mA(24VDC) |
| Insulation Resistance | ≥50MΩ(500VDC) |
| Withstand Voltage | 1000VAC (50/60Hz) |
| ProtectiOn Circuit | Reverse polarity protection/short-circuit protection |
| Operating temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+80℃ |
| Operating humidity | 35%RH~85%RH |
| Storage Humidity | 35%RH~85%RH |
| Environmental illumination | Sunlight ≤10000 Lux |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP65 |
| Connection Method | M8/4-pin plug |
| Dimensions | 63.6x25x10mm |
| Material | PA (reinforced glass fiber) |
| Weight | 0.035kg |
