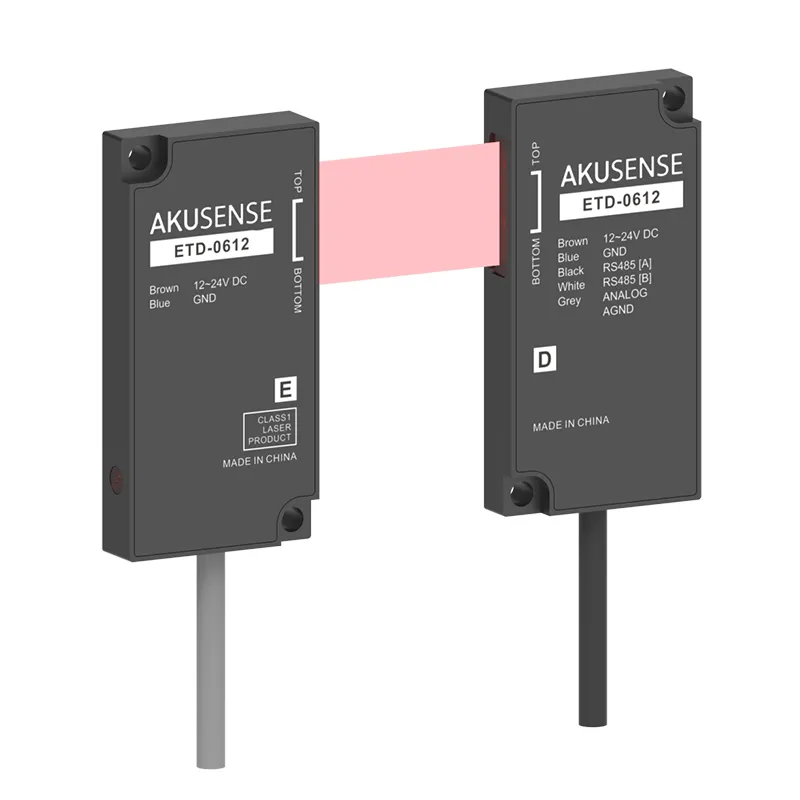

Laser Guiding Sensor ETD-0612
| Ürün Kodu : | ETD-0612 |
| Kategori : | Mesafe sensörleri, Karşılıklı işın kenar sensörleri |
| Etiketler : | ETD-0612 |
| Stok : | Stokta Var |
| Model | ETD-0612 |
| Working principle | Photoelectric sensor |
| Housing | Flat block |
| Optical working principle | Thru-beam |
| Measuring Range | Edge detection mode ±6mm, diameter detection mode 12mm |
| Sensor head mounting distance | 0~200mm |
| Light Source | Red laser, 650nm |
| Spot Size | 13 the x3. 5 mm |
| Indicator | Transmitter (laser emission indicator green); Receiver (optical axis adjustment indicator green, judgment output indicator red) |
| Linearity | ±0.12% F.S. (when setting distance 20mm);±0.4% F.S. (when setting distance 100mm) |
| Repeatability | 1μm(when setting distance 20mm);3μm(when setting distance100mm);5μm(when setting distance 200mm) |
| Sampling period | 1ms |
| Operating Voltage | 12~24VDC±10% |
| Operating current | Emitter:≤10mA，Receiver:≤70mA |
| Communication mode | 485 communication hexadecimal |
| Temperature Drift Characteristics | Plus or minus 0.03% / ℃ |
| Circuit Protection | Reverse connection protection |
| Operating temperature | -10~50℃ |
| Storage Humidity | -20~+60℃ |
| Operating humidity | 35~85%RH(no condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; Sunlight ≤ 10,000 lux |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Enclosurerating | IP50 |
| Connection type | 2x M8/4 pin connector with 0.3m cable |
| Dimensions | 2x8.2x60x30mm |
| Material | Aluminum |
| Weight | 0.01 kg |
| Accessories | Brackets and screws |
