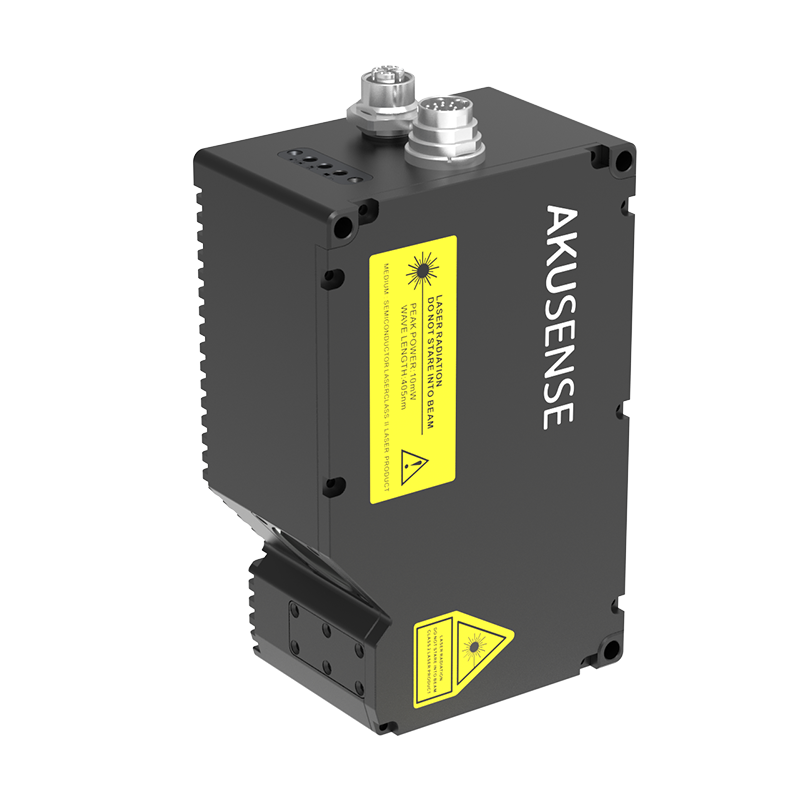

Line Laser Sensor ESX-H20
| Ürün Kodu : | ESX-H20 |
| Kategori : | Mesafe sensörleri, 3d profil sensörleri |
| Etiketler : | ESX-H20 |
| Stok : | Stokta Var |
| Model | ESX-H20 |
| Working principle | Laser 3D measurement displacement sensor |
| Housing | Retangular |
| Optical working principle | Reflection |
| Mounting distance (CD) | 50mm |
| Z-axis Depth of Field (MR | 18mm |
| Near end FOV | 45mm |
| Reference distance | 51mm |
| Distal FOV | 56mm |
| Contour points | 4096 |
| Light source wavelength | 405nm |
| Laser Class | 2M/3R |
| Laser output power | 10mW |
| Reflection Angle | 38 ° |
| X directional resolution | 11.1~13.6μm |
| Z-axis repetition accuracy | 0.3μm |
| Linearity in Z direction (+/-% of MR) | 0.02% |
| Scanning Speed | 1200~16000Hz |
| Operating Voltage | 24V DC±10% |
| Power Consumption | 11W |
| Communication Interface | Gigabit network interface, 24VTTL input 1, output 1, RS485 bidirectional IO 2 |
| Operating temperature | 0~ 50℃ |
| Ambient Illumination | Incandescent≤10000lux |
| Vibration Resistance | 10~55Hz, double amplitude 1.5mm, 2 hours each in X,Y, and Z directions |
| Shock Resistance | Peak acceleration of 15g, duration of 11ms half-sine wave shock |
| Enclosure rating | IP67 |
| Dimension | 190x115x80mm |
| Housing Material | Aluminum |
| Weight | 1.35 kg |
