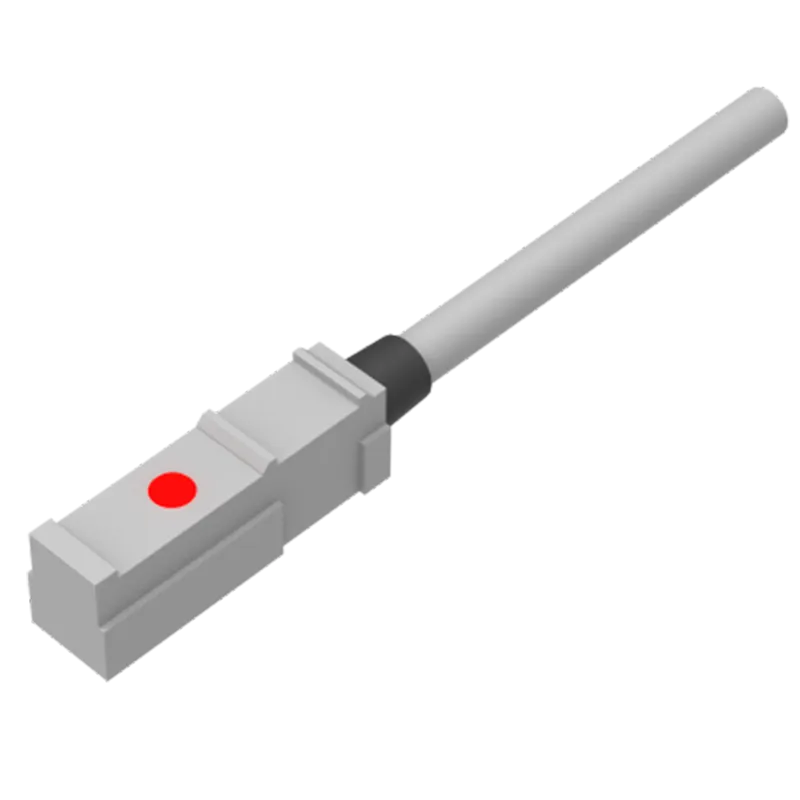

Magnetic sensor MR-C12-N
| Ürün Kodu : | MR-C12-N |
| Kategori : | Algılama sensörleri, Silindir sensörleri |
| Etiketler : | MR-C12-N |
| Stok : | Stokta Var |
| Model | MR-C12-N |
| Operating Principle | Magnetic |
| Shell Style | Square |
| Applicable slot type | Type T |
| Detect magnetic poles | N-pole |
| Magnetic Sensitivity | 2.5 ~ 3.5 mT |
| Indicator light | red |
| Operating Voltage | 5~24V DC |
| Output Current | ≤50mA |
| Power Consumption | ≤12mA |
| Response Speed | 50μs |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP67 |
| Connection Method | 1M/ 2-core cable |
| Dimensions | 5.8x7x20.5mm |
| Material | GF Reinforced PBT: Grey |
| Weight | about14.4g |
