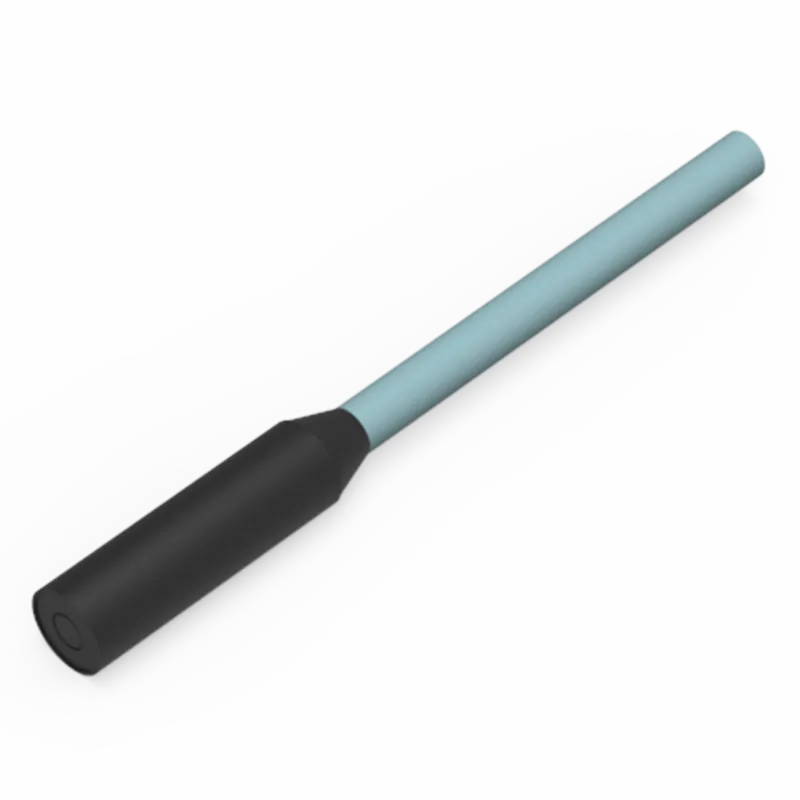

Magnetic sensor MR-P10-H
| Ürün Kodu : | MR-P10-H |
| Kategori : | Algılama sensörleri, Manyetik sensörler |
| Etiketler : | MR-P10-H |
| Stok : | Stokta Var |
| Model | MR-P10-H |
| Operating Principle | Magnetic |
| Shell Style | Cylindrical type |
| Detection Range* | MR-M10L: 4mm; MR-M9K: 8mm |
| Detect magnetic poles | S pole |
| Magnetic Sensitivity | 5~7mT |
| Output Mode | NPN normally open (N.O.) (ON when approaching) |
| Operating Voltage | 5~24V DC |
| Output Current | ≤15mA |
| Power Consumption | ≤15mA |
| Response Speed | 5μs |
| Operating Frequency | 30Hz |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP65 |
| Mounting method | M3 is fixed with a fixed screw with a torque of 0.2N·m or less |
| Connection Method | 1M/3 core cable |
| Dimensions | Φ4.9x16mm |
| Material | SUS303 |
| Weight | about13.4g |
