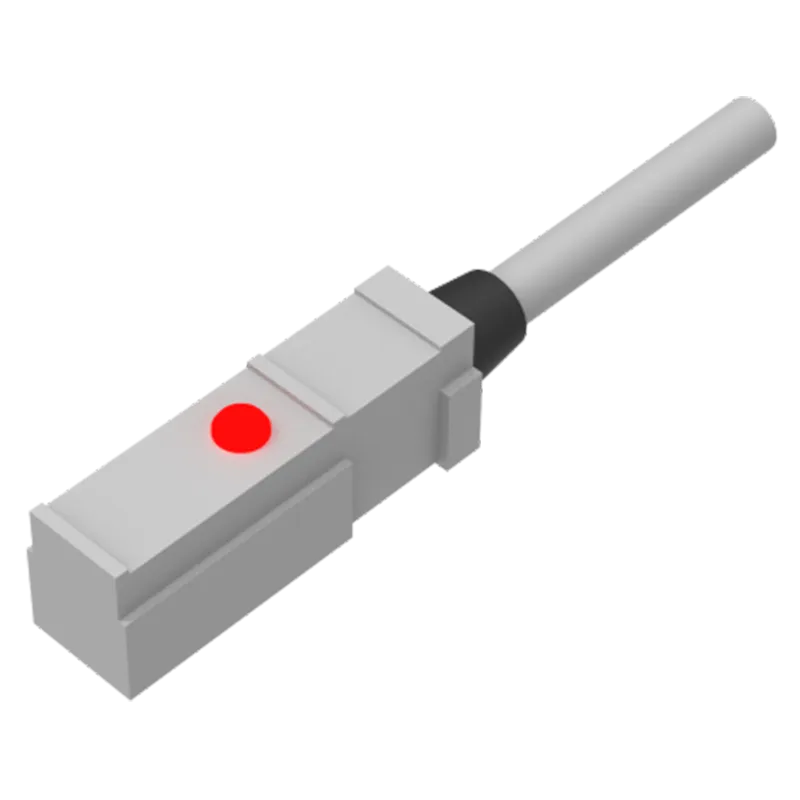

Magnetic sensor MR-P12-S
| Ürün Kodu : | MR-P12-S |
| Kategori : | Algılama sensörleri, Manyetik sensörler |
| Etiketler : | MR-P12-S |
| Stok : | Stokta Var |
| Model | MR-P12-S |
| Operating Principle | Magnetic |
| Shell Style | Square |
| Detection Range* | MR-M10L: 5mm; MR-M9K: 8mm |
| Detect magnetic poles | S pole |
| Magnetic Sensitivity | 2.5 ~ 3.5 mT |
| Output Mode | NPN normally open (N.O.) (ON when approaching) |
| Operating Voltage | 12~24V DC |
| Output Current | ≤50mA |
| Power Consumption | No indicator :15mA MAX, with indicator :12mA MAX |
| Response Speed | 50μs |
| Operating Frequency | 30Hz |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP67 |
| Connection Method | 1M/ 2-core cable |
| Dimensions | 7x5.8x20.5mm |
| Material | GF reinforced PBT |
| Weight | about13.9g |
| Indicator light | red |
