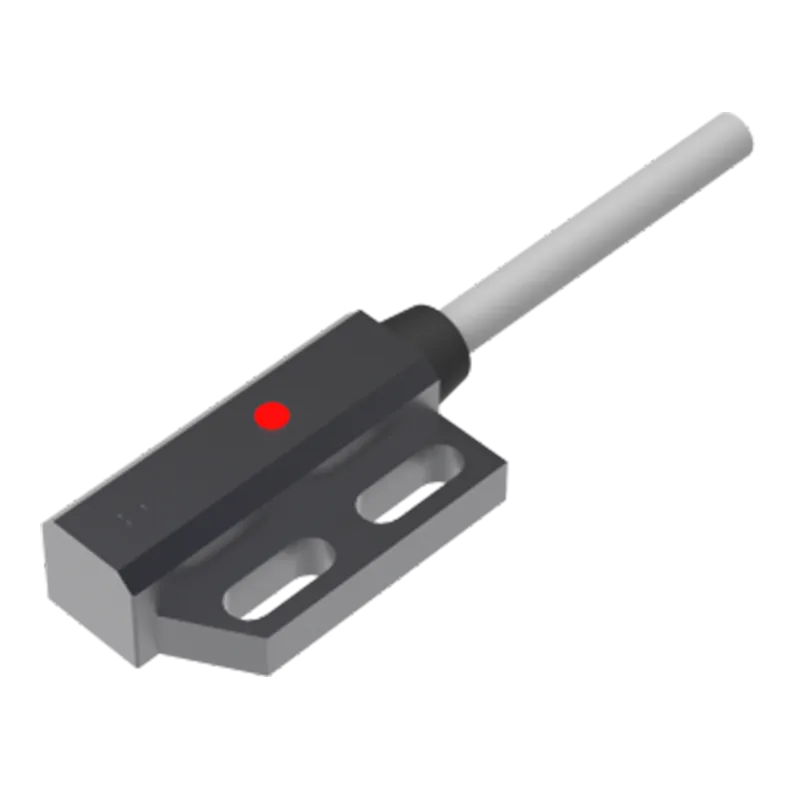

Magnetic sensor MR-PH5-S
| Ürün Kodu : | MR-PH5-S |
| Kategori : | Algılama sensörleri, Manyetik sensörler |
| Etiketler : | MR-PH5-S |
| Stok : | Stokta Var |
| Model | MR-PH5-S |
| Operating Principle | Magnetic |
| Shell Style | Square |
| Detection Range* | MR-M10L: 8mm; MR-M9K: 11mm |
| Detect magnetic poles | S pole |
| Magnetic Sensitivity | 0.9 + / - 0.2 mT |
| Output Mode | NPN normally open (N.O.) (ON when approaching) |
| Operating Voltage | 5~24V DC |
| Output Current | ≤12mA |
| Power Consumption | ≤12mA |
| Response Speed | 5μs |
| Operating Frequency | 30Hz |
| Operating temperature | -20℃~+85℃ without freezing |
| Operating humidity | 20%~95%RH, no condensation |
| Dielectric strength | AC1000V for 1 minute |
| Insulation strength | 250V DC≥20MΩ |
| Protection level | IP67 |
| Mounting method | M3 screw mounting torque 0.3N·m |
| Connection Method | 1M/3 core cable |
| Dimensions | 9x9.6x30mm |
| Material | GF reinforced PBT: black |
| Weight | about23.8g |
| Indicator light | red |
