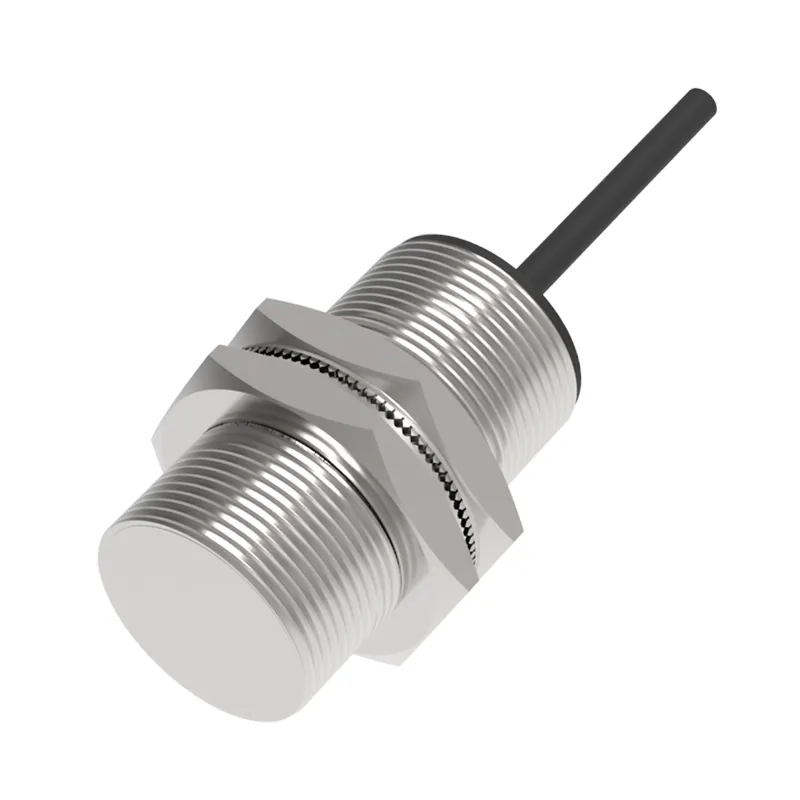

Metal Face Type TMF30-10NO
| Ürün Kodu : | TMF30-10NO |
| Kategori : | Algılama sensörleri, Endüktif sensörler |
| Etiketler : | TMF30-10NOTMF30-10NO |
| Stok : | Stokta Var |
| Model | TMF30-10NO |
| Working principle | Inductive sensor |
| Housing | Cylindrical |
| Installation type | Flush |
| Sensing distance | 10mm±10% |
| Thread size | M30 |
| Sensing Surface Material | Stainless steel |
| Detected objects | Metal sensor |
| Indicator | Operating status: LED |
| Sensing range adjustment | None |
| Switching output | Normally open |
| Output Mode | NPN |
| External input | None |
| Switching frequency | 0.3 kHz |
| Repeatability | 1% |
| Hysteresis | 15% |
| Operating Voltage | 10~30V DC±10% |
| Current Consumption | ≤10mA |
| Residual Voltage | 1.5 V or less |
| Load Current | 150mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Short circuit protection |
| Operating temperature | -25~+75℃ |
| Operating humidity | 35~85% |
| Enclosure rating | IP67 |
| Connection type | 2m/3 wire cable |
| Dimension | M30x54.0mm |
| Material | Stainless steel |
| Weight | 0.12kg |
| Accessories | Nut M30x1.5 |
