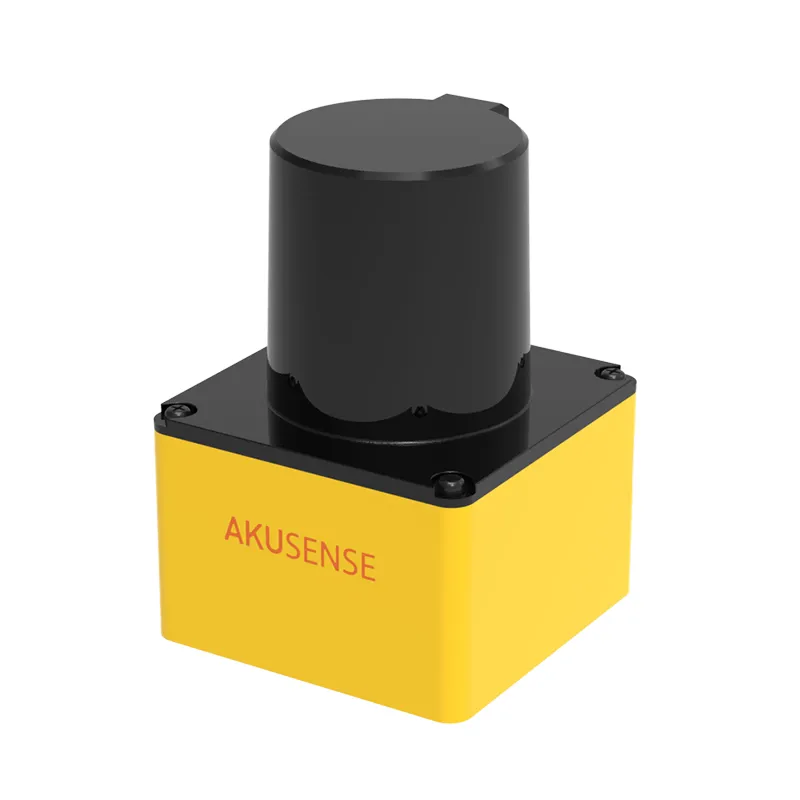

Navigational Lidar AS-31C
| Ürün Kodu : | AS-31C |
| Kategori : | Mesafe sensörleri, Lidar tarayıcıları |
| Etiketler : | AS-31C |
| Stok : | Stokta Var |
| Model | AS-31C |
| Working principle | TOF |
| Optical working principle | Diffuse reflection |
| Light Source | Infrared laser (905nm) |
| Laser spot exit aperture | 7*3mm |
| Scanning angle | 270 ° |
| Scanning Angle Resolution | 0.12 ° / 0.18 ° / 0.23 ° / 0.35 ° |
| Measuring Range | 0.1m ~20m (70% reflectance); 0.1m-10m (10% reflectivity) |
| Measurement Error | Resolution: 1cm; Linearity: 2cm |
| Operating Voltage | DC 12V |
| Power Consumption | 5W |
| Communication | Ethernet or RS485 |
| Operating temperature | - 20 ℃ ~ 60 ℃ |
| Storage Temperature | - 20 ℃ ~ 70 ℃ |
| Operating humidity | 93%, +40 ° C, 2h (GB/T2423.3) |
| Ambient Illumination | 80000 Lux or less |
| Vibration Resistance | 500m/s(about 50G), 3 times each in XYZ direction |
| Enclosure rating | IP65(GB4208~2008) |
| Connection | Cable connection |
| Dimension | 60 * 60 * 84.9 (mm) |
| Material | Aluminum alloy |
| Weight | 0.25 kg |
| Accessories | DC5521 female power socket, RJ45 male Ethernet |
| Safety class | Class 1 (GB 7247.1-2012, eye safety) |
| Laser spot emission angle | 5.2 * 9 mrad |
| Scanning Frequency | 10Hz/15Hz/20Hz/25Hz/30Hz |
| Working condition | Indoor type |
| Device self-test | With |
| Exception alarm function | With |
| Data Sampling Rate | 30KHz |
