| Model |

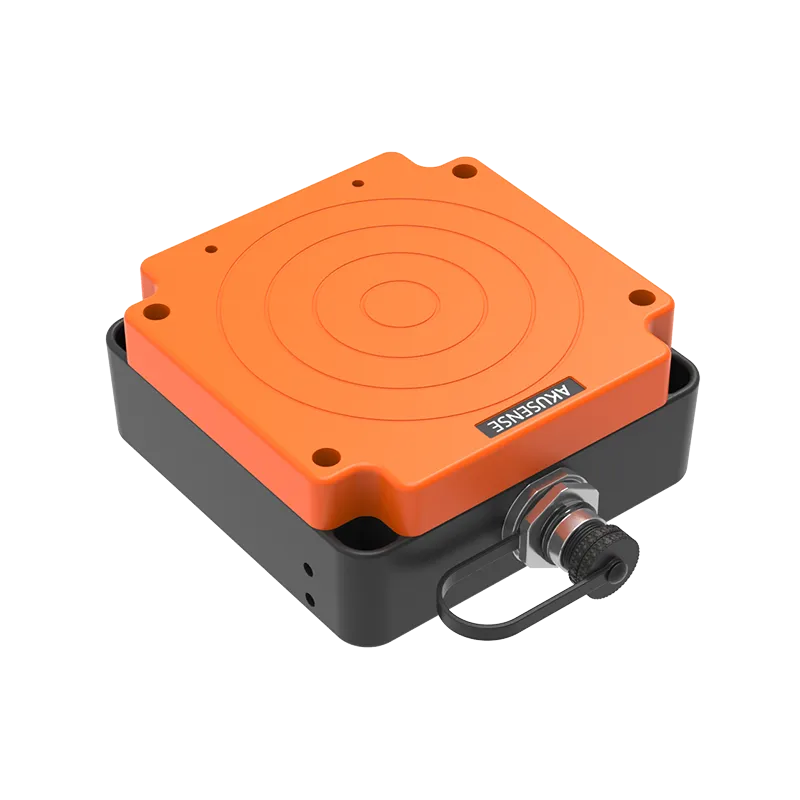

RVC-H610P |
| RF chip |
Korean PR9200 dedicated RF chip |
| Antenna |
Doubly-fed point ceramic antenna or PCB near field antenna |
| Communication Interface |
RJ45, RS232, RS485 |
| Communication Protocol |
ModbusTCP, ModbusRTU, TCP/UDP protocol |
| Communication rate |
Serial port rate 9600 ~ 115200bps,RJ45 10Mbps |
| Reliable firmware upgrade |
Scalable upgrade mechanism |
| Application software interface |
Provide API development kit and C and Java application routines |
| Power Supply |
Operating voltage DC9~24V |
| Power Consumption |
The maximum power consumption is 3W and the maximum starting current is 1A |
| Weight |
About 1.1kg |
| Storage Temperature |
Room temperature |
| Working principle |
RFID |
| Housing |
square |
| Detection Distance |
300~2000mm(depending on label) |
| Write distance |
0~1000mm(depending on reader parameter configuration, antenna gain, label type |
| Supported Countries&Regions |
The United States, Canada and other regions that comply with FCC Part15 specifications in the United States; Europe and other ETSIEN302308 compliant territories; China, India, Japan, South Korea, Malaysia, Taiwan |
| Operating Status |
LED indicator light, buzzer |
| Operating Frequency |
902-928MHz or 865-868MHz |
| Output power |
13-27dBm±1dBm |
| Output power adjustment |
1dBm step (set via VANCH software) |
| Receiving Sensitivity |
<70dBm |
| Peak speed of stored tags |
>50 times/second |
| Tag RSSI |
Support |
| WiFi(optional) |
Support IEEE 802.11n /b/g |
| General Purpose Input/Output (GPIO) |
2 inputs, 2 outputs |
| Operating temperature |
- 40 ℃ ~ + 85 ℃ |
| Enclosure rating |
IEC IP67 |
| Heating device (optional) |
Low temperature automatic heating (-5 °) optional (determined according to the project site environment) |
| Connection |
Industrial connection tailline one to five |
| Dimension |
95.3 x95x40. 1 mm |
| Material |
Aluminum alloy, plastic |
| Accessories |
Cable |
