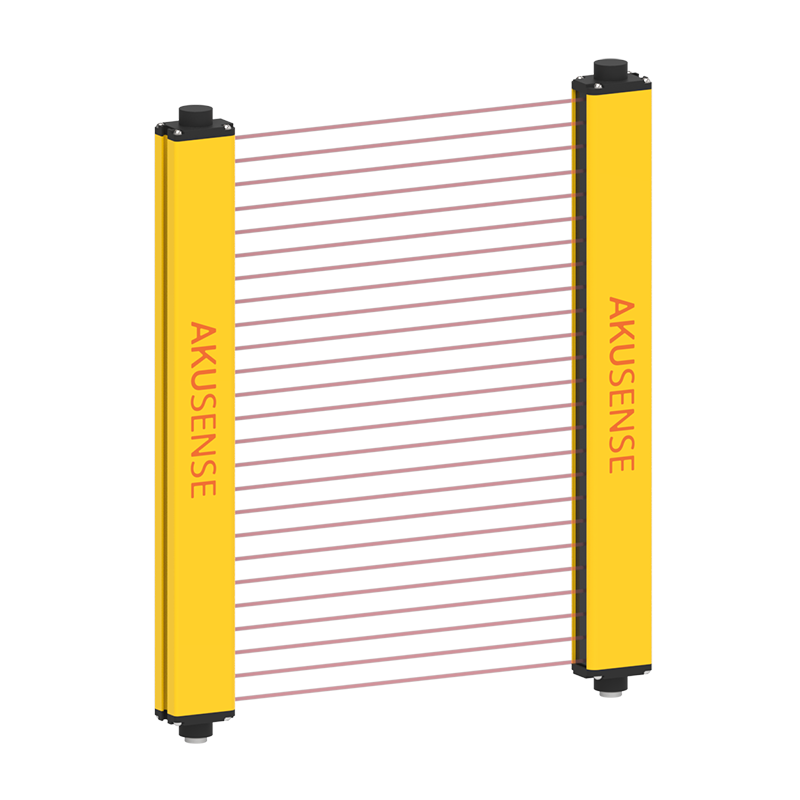

Safety Light Curtain SAF10-T2820PC
| Ürün Kodu : | SAF10-T2820PC |
| Kategori : | Emniyet sensörleri, Güvenlik işık perdeleri |
| Etiketler : | SAF10-T2820PC |
| Stok : | Stokta Var |
| Model | SAF10-T2820PC |
| Working principle | Photoelectric sensor |
| Housing | Array |
| Optical working principle | Thru-beam |
| Safety class | Type 4 Cat.4 PLe |
| Standard | GB 4584, GB/T 19436.1 (Type 4), GB/T 19436.2 (Type 4), IEC 61496-1 (Type 4), IEC 61496-2 (Type 4) |
| Light Source | Infrared light, 940nm(modulated) |
| Beam Pitch | 10mm |
| Number of beams | 28 beams |
| Protection Height | 359mm |
| Protection Distance | 8~20m |
| Mini. detectable object | Opaque body above φ18 |
| Output Mode | PNP (two sets) |
| Synchronization Type | Line Synchronization |
| Response Time | ≤20ms |
| Operating Voltage | 24VDC±10% |
| Current Consumption | Emitter: ≤300mA, receiver: ≤100mA |
| Power Consumption | 3~10W |
| Residual Voltage | ≤3.5V (300mA) |
| Load Current | ≤300mA |
| Insulation Resistance | ≥100MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -10~55℃(without freezing) |
| Storage Temperature | -40~70℃(not freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH (no condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; LED lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10 to 55Hz, double amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Protection class | IP65 |
| Connection type | Cable |
| Dimensions | 239~2959x35x52mm |
| Weight | 1.2~14.8kg |
| Accessories | Mounting bracket, mounting screws, M18/7PIN cable x2 |
