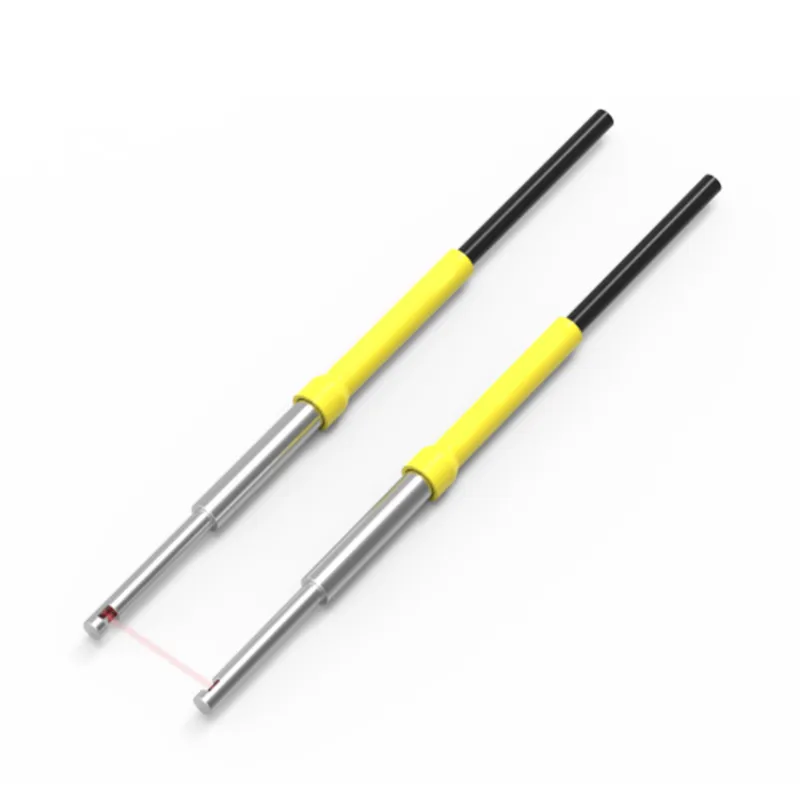

Side-view Fiber Component PT-32-SQ
| Ürün Kodu : | PT-32-SQ |
| Kategori : | Algılama sensörleri, Fiber optik sensörler |
| Etiketler : | PT-32-SQ |
| Stok : | Stokta Var |
| Model | PT-32-SQ |
| Working principle | Fiber optic componentsPT-32-SQ |
| Optical working principle | Diffuse reflection |
| Housing style | Rectangular type, long convex tube |
| Fiber head type | Ø 2.5 |
| Sensing distance | With PG1:80mm; With PE1:140mm |
| Fiber length | 2000mm |
| Fiber diameter | Ø 0.5 mm |
| Fiber arrangement | Standard |
| Core construction | Transmit: 1, receive: 1 |
| Integrated lens | No lens |
| Bend Radius | 10mm |
| Fiber can be cut short | Can be cut with fiber cutter |
| Accessories | No installation parts |
