| Model |

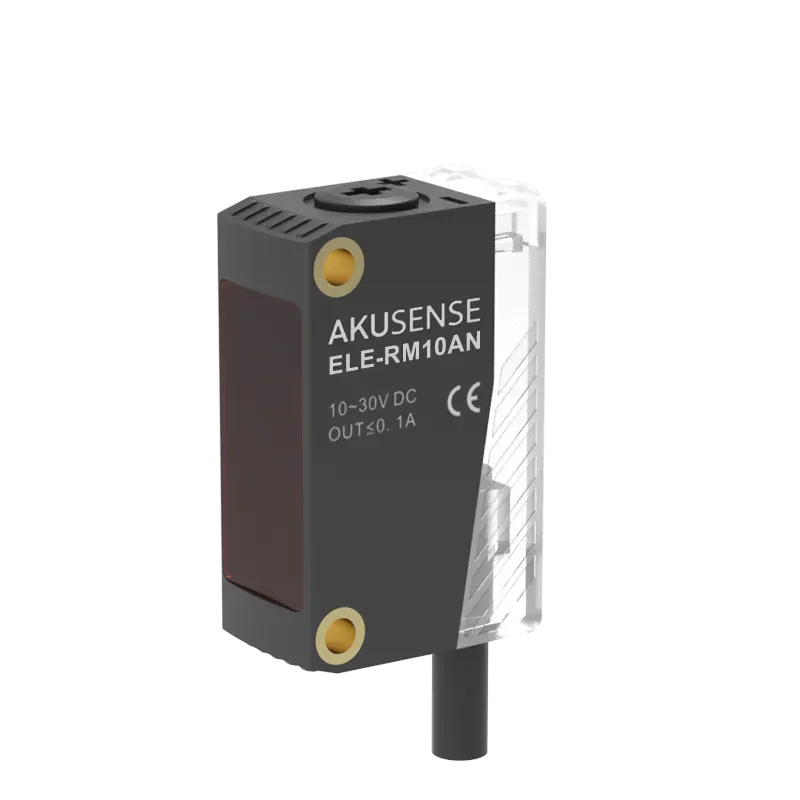

ELE-RM10AN |
| Working principle |
Photoelectric sensor |
| Housing style |
Square |
| Optical working principle |
Retroreflective |
| Detection Range |
10m |
| Light Source |
Red laser, 650nm (modulated) Class 2 |
| Spot Size |
≤15mmx15mm at 10m |
| Detected Object |
0.5 mm or less |
| Indicator light |
Work indicator light: green; Output indicator: red |
| Sensitivity Adjustment |
Single-turn potentiometer |
| Switch Mode |
L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode |
NPN open collector |
| Response Time |
≤1ms |
| Switching frequency |
0.5 kHz |
| Repeatability |
≤5% |
| Hysteresis |
≤20% |
| Operating Voltage |
10~30V DC |
| Current Consumption |
≤20mA |
| Residual Voltage |
< 1.5 V |
| Load Current |
≤100mA (30VDC) |
| Insulation Resistance |
≥50MΩ (500V DC) |
| Withstand Voltage |
1000VAC (50/60Hz) |
| ProtectiOn Circuit |
Power supply reverse polarity protection/short circuit protection |
| Operating temperature |
-25~55℃(no freezing/no condensation) |
| Storage Temperature |
-30~70℃(no freezing) |
| Operating humidity |
35~85%RH (no condensation) |
| Storage Humidity |
35~95%RH |
| Ambient light |
LED light ≤1000 Lux |
| Vibration Resistance |
10~50Hz, amplitude 0.5mm, X, Y, Z axis, 2 hours each |
| Protection rating |
IP67 |
| Maximum Tightening Torque |
0.5 Nm or less |
| Connection Method |
2M/3 Core Cable |
| Dimensions |
11.0 x31.0 x20.0 mm |
| Material |
PBT+ fiberglass |
| Weight |
Approx. 70g |
| Accessories |
Screwdrivers, reflectors, mounting brackets, screws |
