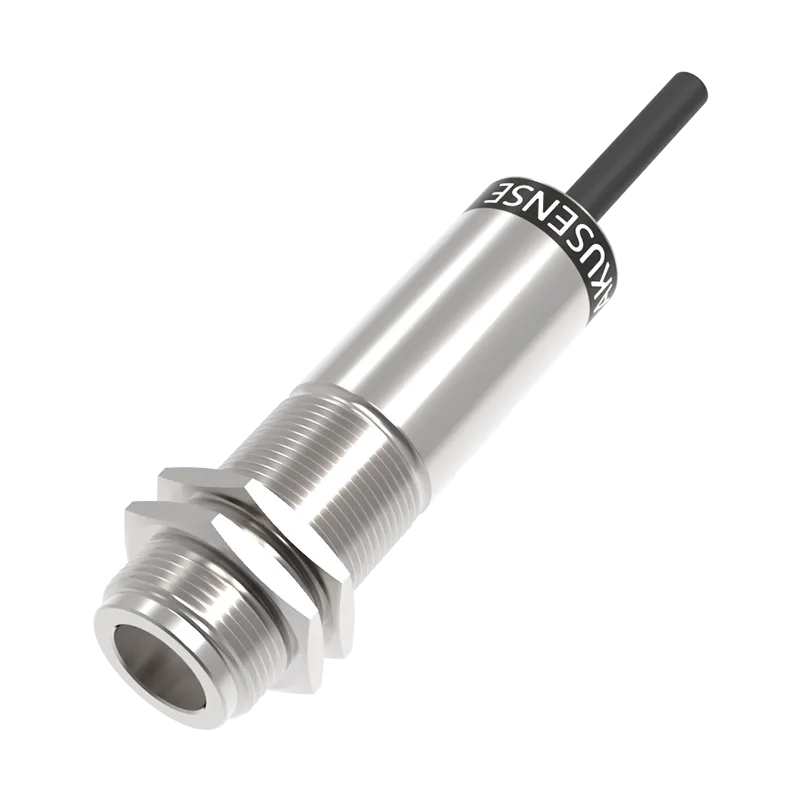

Temperature sensor TTS-20300A
| Ürün Kodu : | TTS-20300A |
| Kategori : | Ölçüm sensörleri, Sıcaklık sensörleri |
| Etiketler : | TTS-20300A |
| Stok : | Stokta Var |
| Model | TTS-20300A |
| Working principle | Non-contact temperature sensor |
| Housing | Cylindrical |
| Measurement Range | -20℃~300℃ |
| Spectral Range | 8~14um |
| Resolution | 1℃ |
| Optical Resolution | 20:1 |
| Emissivity | 0.95 |
| Temperature Accuracy | ±2% of measured value |
| Repeatability | ±1% of measured value |
| Response Time | 300ms |
| Operating Voltage | 12~24V DC |
| Current Consumption | ≤20mA |
| Analog Output | 4~20mA |
| Operating temperature | 0℃~60℃ |
| Storage Temperature | -20℃~80℃ |
| Operating humidity | 10~95%(no condensation) |
| Enclosure rating | IP65 |
| Connection Method | 2m/4-core cable |
| Dimensions | M18x67mm |
| Material | Stainless steel |
| Weight | About 122g |
| Accessories | Nut |
