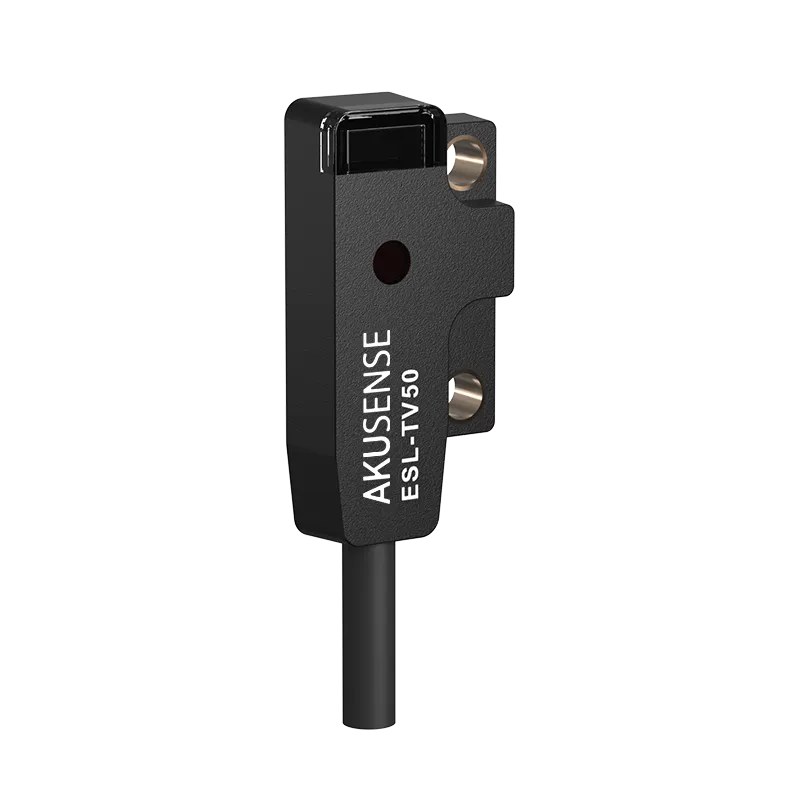

Thin Type ESL-TV50PO
| Ürün Kodu : | ESL-TV50PO |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | ESL-TV50PO |
| Stok : | Stokta Var |
| Model | ESL-TV50PO |
| Working principle | Photoelectric sensor |
| Housing style | Flat square |
| Optical working principle | Through-beam |
| Detection Range | 0~500mm |
| Spot Size | Not applicable (infrared light) |
| Detected Object | φ1.5mm opaque body |
| Light Source | Infrared LED 945nm(modulated) |
| Indicator light | Output indicator: orange; Light source indicator: green |
| Sensitivity Adjustment | None |
| Switch Mode | D.on (Blackout action) |
| Output Mode | PNP open collector |
| Response Time | ≤1ms |
| Switching frequency | 800Hz |
| Repeatability | <5% |
| Hysteresis | ＜15%Sr |
| Operating Voltage | 10~30V DC±10% |
| Current consumed | ≤20mA |
| Residual Voltage | <1.5V (load current ≤50mA) |
| Load Current | ≤50mA (30VDC) |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Withstand Voltage | 500VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -25~55℃(without freezing) |
| Storage Temperature | -30~+60℃(no freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35 to 95%RH (no condensation) |
| Ambient light | Incandescent lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10~50Hz sweep frequency, 1.5mm amplitude, 2 hours each in X, Y, and Z directions |
| Protection rating | IP65 |
| Maximum Tightening Torque | 0.2N·m |
| Connection Method | Transmitter: 2m/2-core cable, diameter 2.5mm; Receiver: 2m/3m core cable, diameter 2.5mm |
| Dimensions | Transmitter: 19.25*10.25*4mm, Receiver: 20.5*10.25*4mm |
| Material | PC |
| Weight | 0.044 kg |
| Accessories | Mounting screws |
