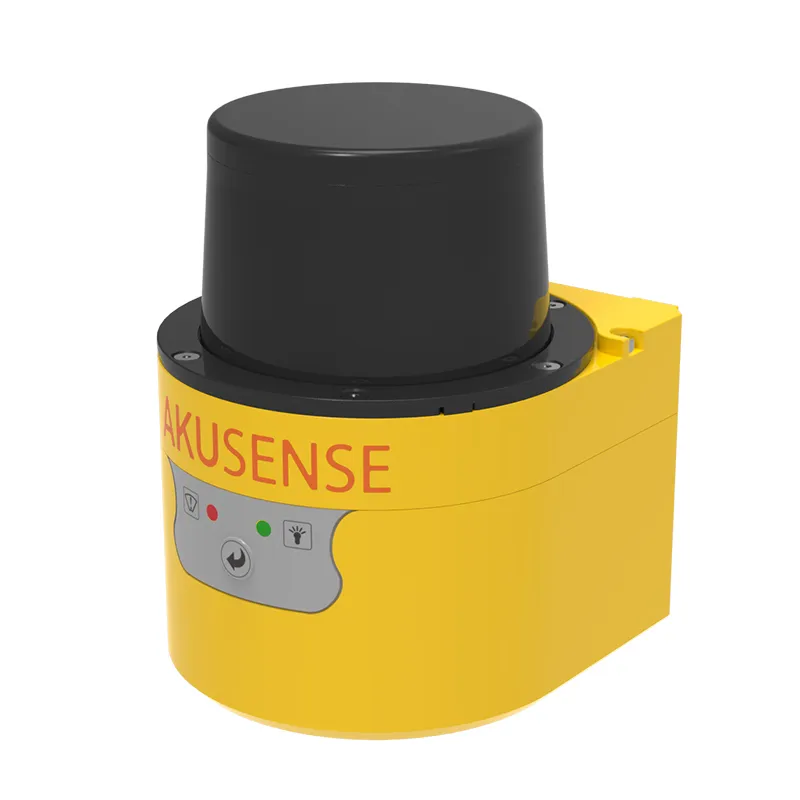

TOF LiDAR AS-21C
| Ürün Kodu : | AS-21C |
| Kategori : | Mesafe sensörleri, Lidar tarayıcıları |
| Etiketler : | AS-21C |
| Stok : | Stokta Var |
| Model | AS-21C |
| Working principle | TOF |
| Optical working principle | Diffuse reflection |
| Light Source | Infrared laser (905nm) |
| Laser spot exit aperture | 8mm |
| Scanning angle | 300 ° |
| Scanning Angle Resolution | 0.5°(system default)/0.25°/0.125° |
| Measuring Range | 0.1m to 20m |
| Operating Voltage | 10V~28V DC |
| Power Consumption | 5W(measuring), 3.6W@DC 12V/14.4W@DC 24V(heating) |
| Communication | Ethernet, rate: 10/100 Mbps; Network protocol: TCP/P: Functions: device configuration/measurement data output/monitoring signal output |
| Operating temperature | - 25 ℃ ~ + 50 ℃ |
| Storage Temperature | - 30 ℃ ~ + 70 ℃ |
| Operating humidity | 93% and + 40 ℃, 2 h (GB/T2423.3) |
| Ambient Illumination | 70000 Lux or less |
| Vibration Resistance | GB/T 2423,10 |
| Enclosure rating | IP65(GB4208~2008) |
| Connection | GB/T 2423,10 |
| Dimension | 83.5 * 85 * 104.9 (mm) |
| Material | Aluminum alloy |
| Weight | 0.6 kg |
| Accessories | Side mount/seat mount composite support AS-21C-AT, power cable AS-21C-EC, standard RJ45 network cable, waterproof sheath of network cable crystal head, M4*8 screws and gaskets, recommended installation tool |
| Safety class | Class 1 (GB 7247.1-2012, eye safety) |
| Laser spot emission angle | 12.5 mrad |
| Scanning Frequency | 300°(-60° to +240°) |
| System error (typical) | ±5cm |
| Statistical error(1a) | ±2cm |
| Indicator | Quantity: 2; Definition: ERR (device alarm: fault/abnormal, transmission mask dirty/blocked, high and low temperature, fog); HTR (operating status indicator: detection signal/self-learning) |
