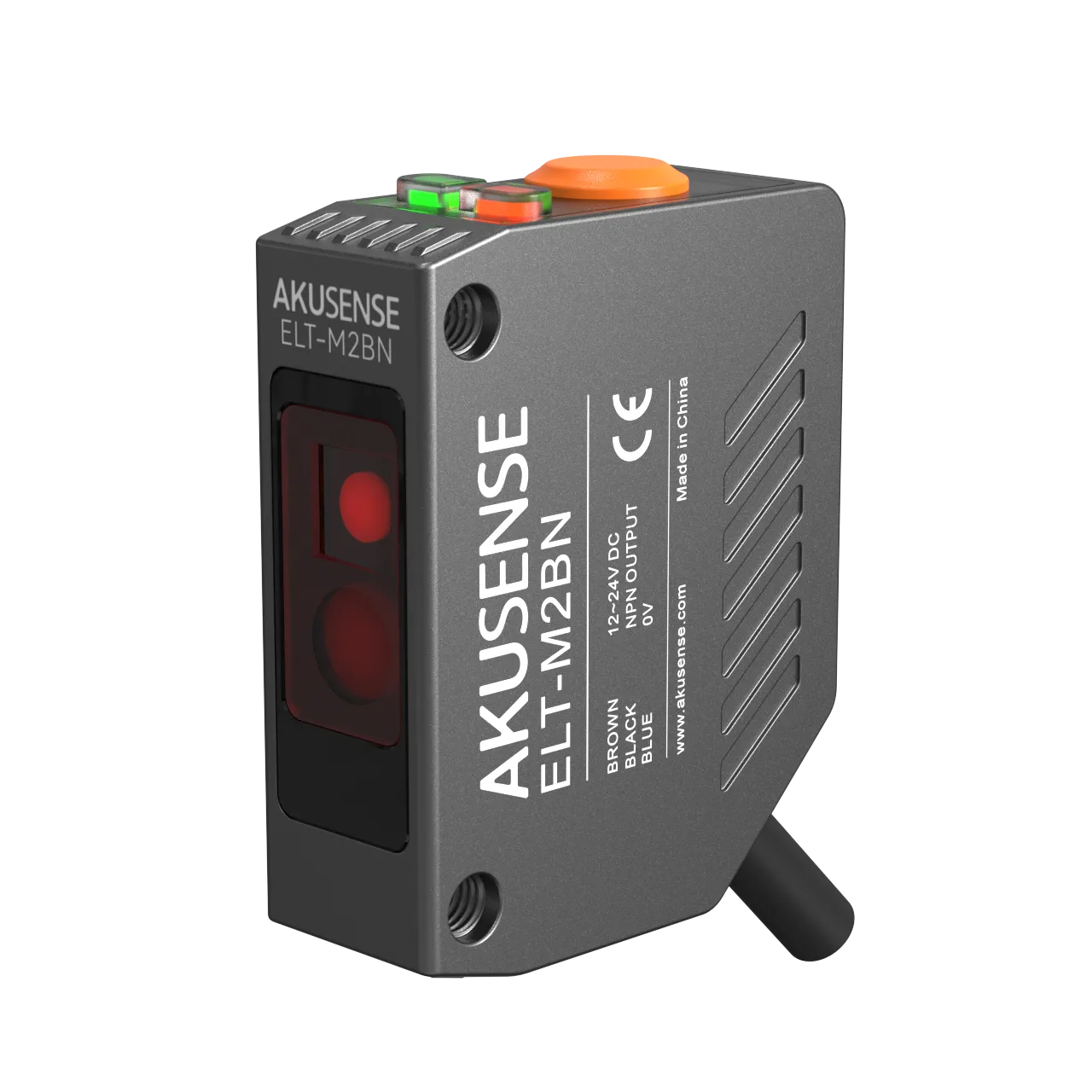

TOF Principle Type ELT-M2BN
| Ürün Kodu : | ELT-M2BN |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | ELT-M2BN |
| Stok : | Stokta Var |
| Model | ELT-M2BN |
| Working principle | TOF principle |
| Housing style | Square |
| Optical working principle | TOF(Time of Flight） |
| Detection Range | 0.05~2m |
| Spot Size | <5mm@2m |
| Detected Object | ≥φ5mm opaque object |
| Light Source | Laser diode 650nm, Class 2 |
| Indicator light | Output Indicator Light: Orange Power Indicator Light: Green |
| Sensitivity Adjustment | Button setting |
| Switch Mode | NC/NO switchable |
| Output Mode | NPN open collector |
| Response Time | 1ms |
| Switching frequency | ＜10mm |
| Repeatability | ＜20% |
| Operating Voltage | 9~30V DC |
| Current consumed | <30mA@24V |
| Residual Voltage | <1V(Load current＜100mA) |
| Load Current | ≤100mA |
| Insulation Resistance | ≥50MΩ(500VDC) |
| Withstand Voltage | 1000VAC (50/60Hz) |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection |
| Operating temperature | -20℃~+55℃(No Freezing) |
| Operating humidity | 35%~85%RH(No Condensation) |
| Ambient light | Incandescent Lamp ≤ 3000 Lux; Sunlight ≤ 10000 Lux |
| Vibration Resistance | 10~55Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP54 |
| Maximum Tightening Torque | 0.5N·m |
| Connection Method | Ф4.0*2M/3 Black cable |
| Dimensions | 34.5*26.2*11mm |
| Material | Housing: PC+ABS; Lens: PMMA |
| Weight | 0.05kg |
