Yeni

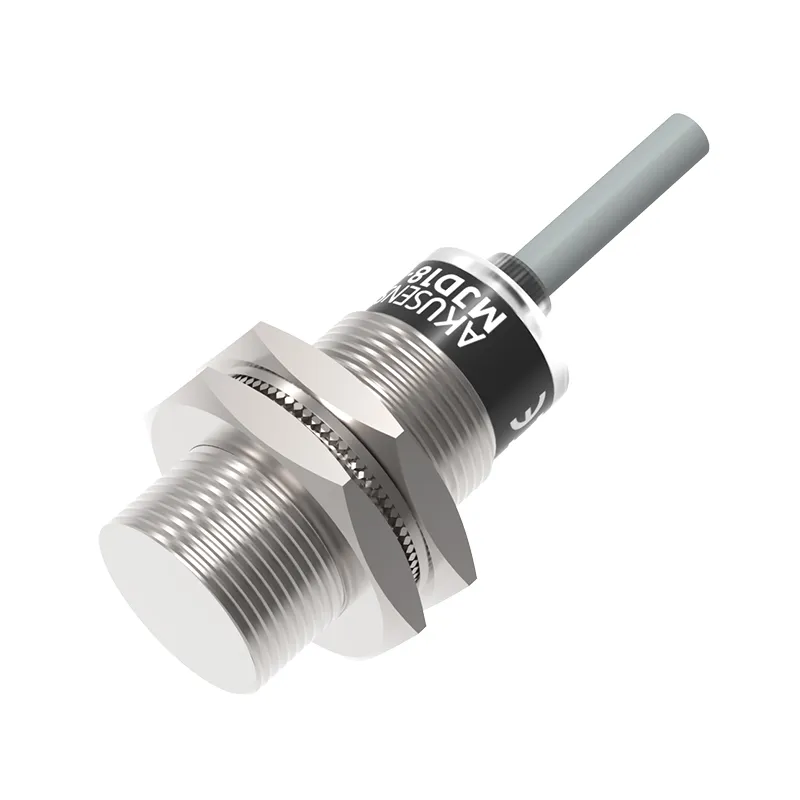

Triaxial Measurement Sensor MJD18-W
| Ürün Kodu : | MJD18-W |
| Kategori : | Ölçüm sensörleri, İvme ve eğim sensörleri |
| Etiketler : | MJD18-W |
| Stok : | Stokta Var |
| Model | MJD18-W |
| Working principle | Principle of inertia |
| Enclosure type | Cylindrical |
| Detect range | ±16g(MAX) |
| Detect axis | 3(X,Y,Z) |
| Resolution | 15.62mg@±2g; 31.25mg@±4g;62.50mg@±8g; 125mg@±16g |
| Technical | MEMS(microelectromechanical system) |
| Operating Voltage | 24VDC±20% |
| Power Consumption | <1W |
| Digital Output | RS-485(addressable) 57600 baud - 1 bit stop- no parity |
| Resolution Digital Output | 16 bit@RS-485;12 bit@Analog output |
| Voltage Analog Output | 0~5V/0~10V(programmable) |
| Current Analog Output | 4~20mA/0~20mA/0~24mA(programmable) |
| Vibration Frequency | 0~400Hz |
| Resistance | Resistance (voltage) : 1k~1MΩ; Resistance (current) : 100~500 Ω |
| Protect the circuit | Reverse polarity protection, surge protection |
| Working Temperature | - 25 ℃ ~ + 70 ℃ |
| Storage Temperature | -30℃~+90℃ no condensation |
| Working environment humidity | <80% no condensation |
| Protect degree | IP67 |
| Connection Method | 5 core cable |
| Dimensions | M18x40.5mm |
| Material | Stainless steel AISI 316L |
| Weight | 100G |
| Accessories | Nut |
