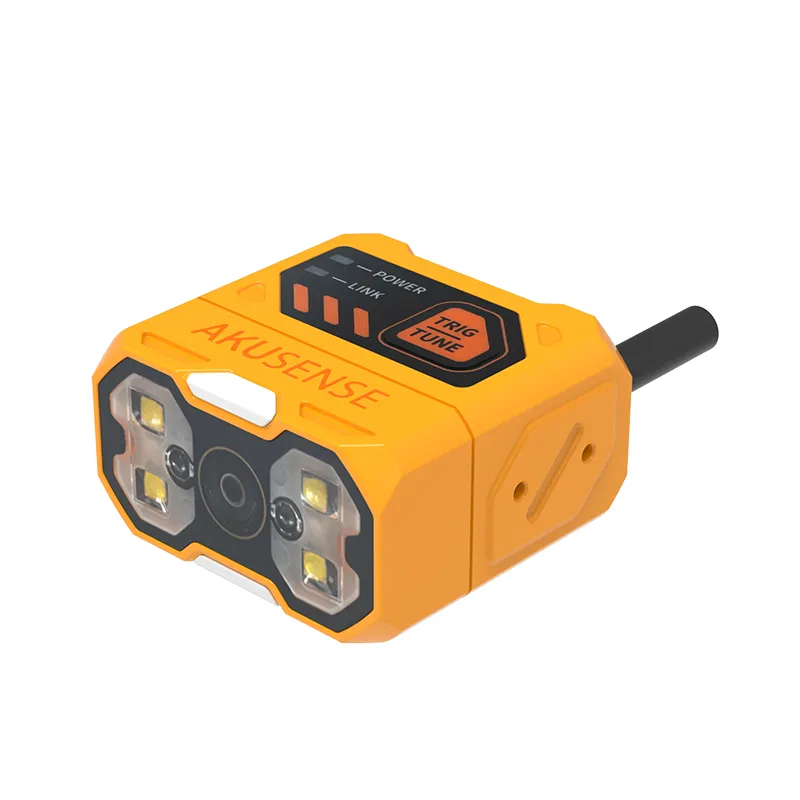

Vision Sensor VDS10-BQ0116-RP
| Ürün Kodu : | VDS10-BQ0116-RP |
| Kategori : | Görsel kontrol ve tanımlama, Görüntü işleme sensörleri |
| Etiketler : | VDS10-BQ0116-RP |
| Stok : | Stokta Var |
| Model | VDS10-BQ0116-RP |
| Operating Principle | Intelligent Vision Sensor |
| Shell Style | Square |
| Detection Range | 40 ~ 300mm (@6mm), 100 ~ 400mm (@16mm) |
| Focal Length | 16mm |
| Focus Adjustment Method | Liquid focusing |
| Resolution | 1280 * 800 |
| Light Source | Unbiased red light |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | 2 green points of light indicate the center area of the scan position; And 3 status leds and buzzers |
| Image Sensor Size | 3μm x 3μm |
| Target Surface Size | 1/4" |
| Exposure Time | 20μs~10000μs |
| Operating Voltage | 24V DC |
| Power Consumption | 5W |
| Output type | Two optocoupler isolated input, support NPN, PNP type; Three non-isolated outputs |
| Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20~70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 47x25x43mm |
| Weight | About 100g |
| Accessories | M12-17PIN cable, 24V power adapter (optional), L-shaped mounting bracket + screws |
| Maximum Reading Speed | 60 |
| Gain | 0 dB ~ 255dB |
