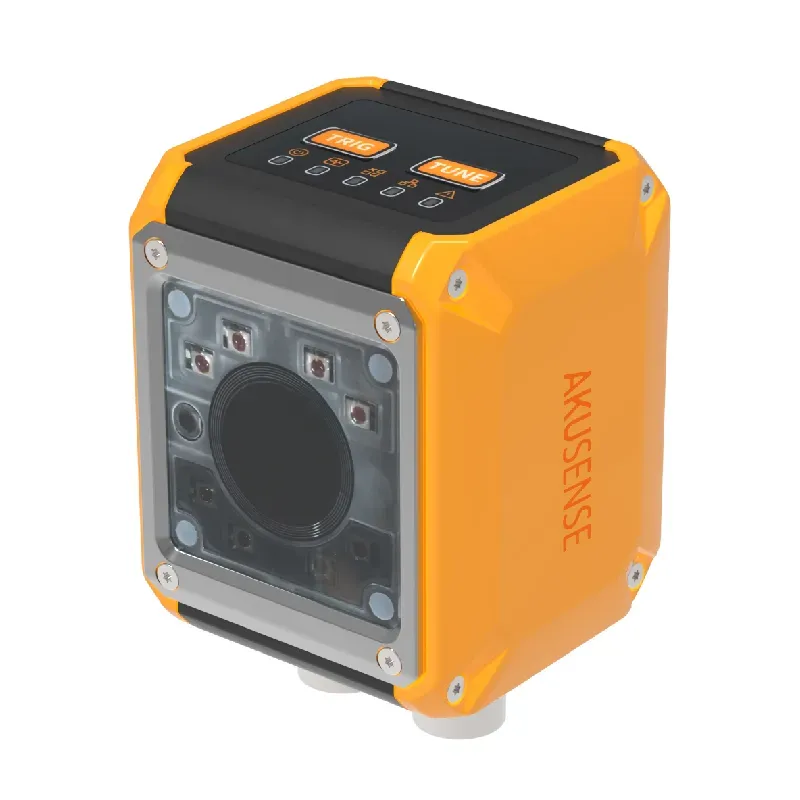

Vision Sensor VDS20-BX0112-RD
| Ürün Kodu : | VDS20-BX0112-RD |
| Kategori : | Görsel kontrol ve tanımlama, Görüntü işleme sensörleri |
| Etiketler : | VDS20-BX0112-RD |
| Stok : | Stokta Var |
| Model | VDS20-BX0112-RD |
| Operating Principle | Intelligent Vision Sensor |
| Shell Style | Square |
| Detection Range | 100~1000mm |
| Focal Length | 12mm |
| Focus Adjustment Method | Mechanical focusing |
| Resolution | 1280 * 800 |
| Light Source | Polarized red light |
| Color/black And White | black and white |
| Shutter | Overall |
| Indicator light | 1 green light point to indicate the scanning position center area; 5 status leds and buzzers |
| Image Sensor Size | 3μm x 3μm |
| Target Surface Size | 1/4" |
| Exposure Time | 20μs~10000μs |
| Operating Voltage | 24V DC |
| Power Consumption | 15W |
| Output type | Two input control, optocoupler isolation - support NPN, PNP type; Three output control, optocoupler isolation |
| Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20~70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 58 x53. 5 x83mm |
| Weight | About 220g |
| Accessories | M12-12PIN-3M (3m high flexibility) M12-8PIN-3M (3m high flexibility) L-shaped mounting bracket, 24V power adapter (optional), screw pack |
| Maximum Reading Speed | 60 |
