Yeni

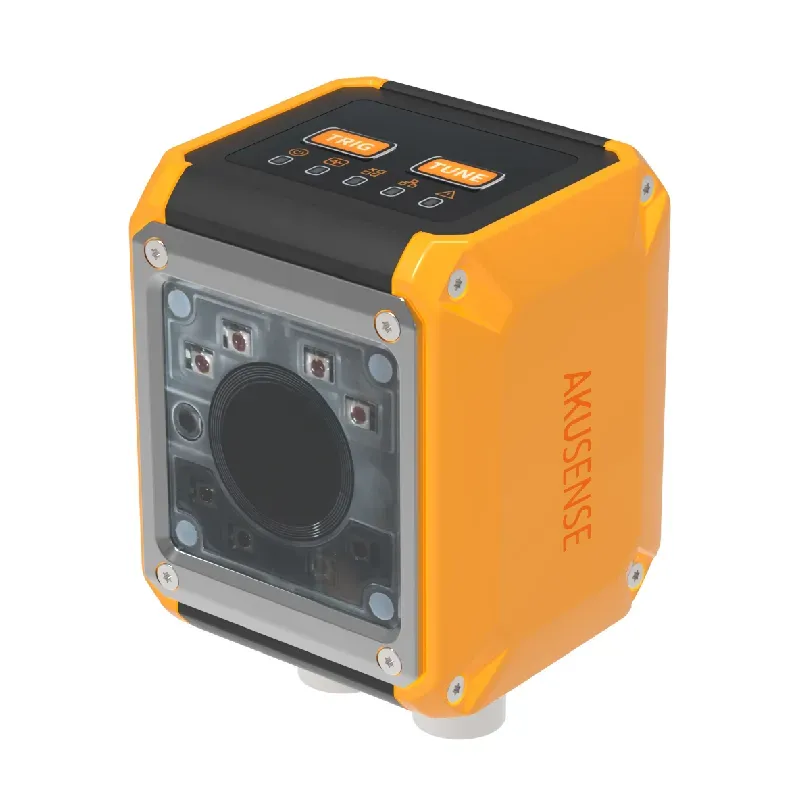

Vision Sensor VDS20C-X508WP
| Ürün Kodu : | VDS20C-X508WP |
| Kategori : | Görsel kontrol ve tanımlama, Görüntü işleme sensörleri |
| Etiketler : | VDS20C-X508WP |
| Stok : | Stokta Var |
| Model | VDS20C-X508WP |
| Operating Principle | Intelligent Vision Sensor |
| Shell Style | Square |
| Detection Range | 100~2000mm |
| Focal Length | 8mm |
| Focus Adjustment Method | Autofocus |
| Frame Rate | 30fps |
| Resolution | 2600 * 1952 |
| Light Source | Non-biased standard white light |
| Color/black And White | Color |
| Shutter | roller shutters |
| Indicator light | 1 green light point to indicate the scanning position center area; 5 status leds and buzzers |
| Image Sensor Size | 2.2μm x 2.2μm |
| Target Surface Size | 1/2.5" |
| Exposure Time | 20μs~100ms |
| Operating Voltage | 24V DC |
| Power Consumption | 15W |
| Output type | Two input control, optocoupler isolation - support NPN, PNP type; Three output control, optocoupler isolation |
| Communication Protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial |
| Communication Interface | RS232, Ethernet |
| Operating temperature | 0~45℃ |
| Storage Temperature | -20~70℃ |
| Humidity | 5% to 95%RH(non-condensing) |
| Protection level | IP67 |
| Connection Method | Cable connection |
| Dimensions | 58 * 53.5 * 69 mm |
| Weight | About 220g |
| Accessories | M12-12PIN-3M (3m high flexibility) M12-8PIN-3M (3m high flexibility) special data cable, L-shaped mounting bracket, screwdriver |
