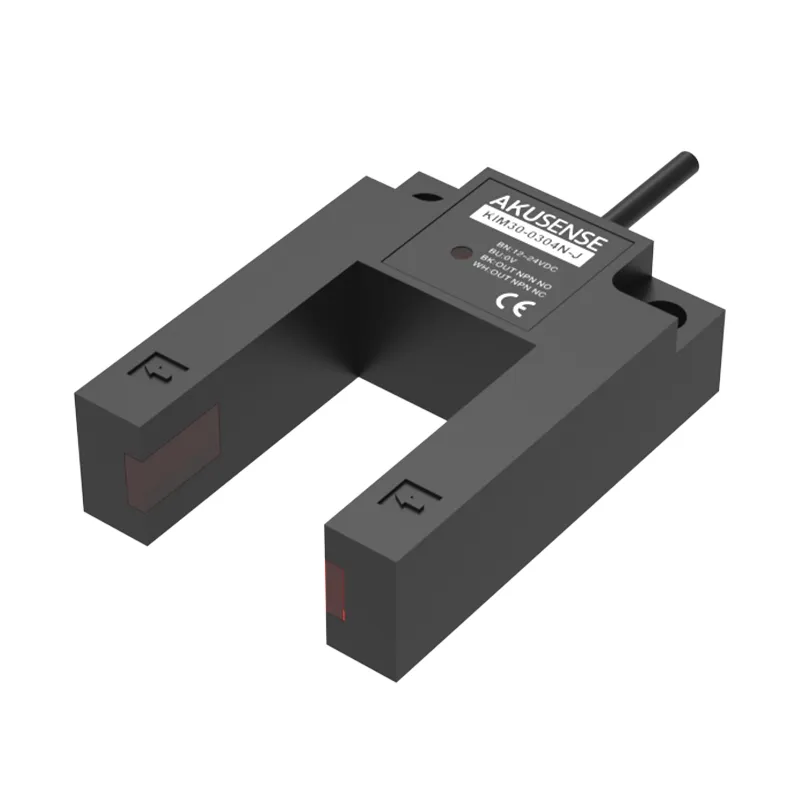

Wide Slot Sensor KIM30-0304N-J
| Ürün Kodu : | KIM30-0304N-J |
| Kategori : | Algılama sensörleri, Çatal sensörler |
| Etiketler : | KIM30-0304N-J |
| Stok : | Stokta Var |
| Model | KIM30-0304N-J |
| Working principle | Photoelectric sensor |
| Housing style | Shape U |
| Optical working principle | Through-beam |
| Light Source | Infrared LED, 940nm(modulated) |
| Slot Width | 30mm |
| Slot depth | 44m |
| Detecting object | 2mm |
| Indicator light | Output function: Yellow LED |
| Switching mode | L.on (light-on action)/D.on (dark-on action) switchable |
| Output Mode | NPN collector open |
| Response Time | 1ms |
| Switching frequency | 2kHz |
| Repeat accuracy | <0.03mm |
| Hysteresis | <0.03mm |
| Operating Voltage | 12~24V DC±10% |
| Power Consumption | ≤15mA |
| Residual Voltage | ≤2.5V（100mA） |
| Load Current | ≤100mA（24VDC） |
| Insulation Resistance | ≥50MΩ(500VDC) |
| Withstand Voltage | 1000VAC (50/60Hz) |
| ProtectiOn Circuit | Reverse polarity protection/short-circuit protection |
| Operating temperature | -15~55℃(no freezing) |
| Storage Temperature | -25~80℃(no freezing) |
| Operating humidity | 35~95%RH(no condensation) |
| Storage Humidity | 35~95%RH(no condensation) |
| Environmental illumination | LED light ≤500 Lux |
| Vibration Resistance | 10~50Hz, amplitude 1.5mm, 2 hours each in X/Y/Z axes |
| Protection rating | IP60 |
| Connection Method | M8/4-pin plug |
| Dimensions | 52.0x20.2x72.0mm |
| Material | ABS |
| Weight | 0.065kg/0.019kg |
